To start working with the ConnectCore 95 module and Digi Embedded Yocto, you need the following items:

  • A ConnectCore 95 Development Kit

    Verify that your ConnectCore 95 Development Kit contains the following components:

    Qty. Part Image

    1

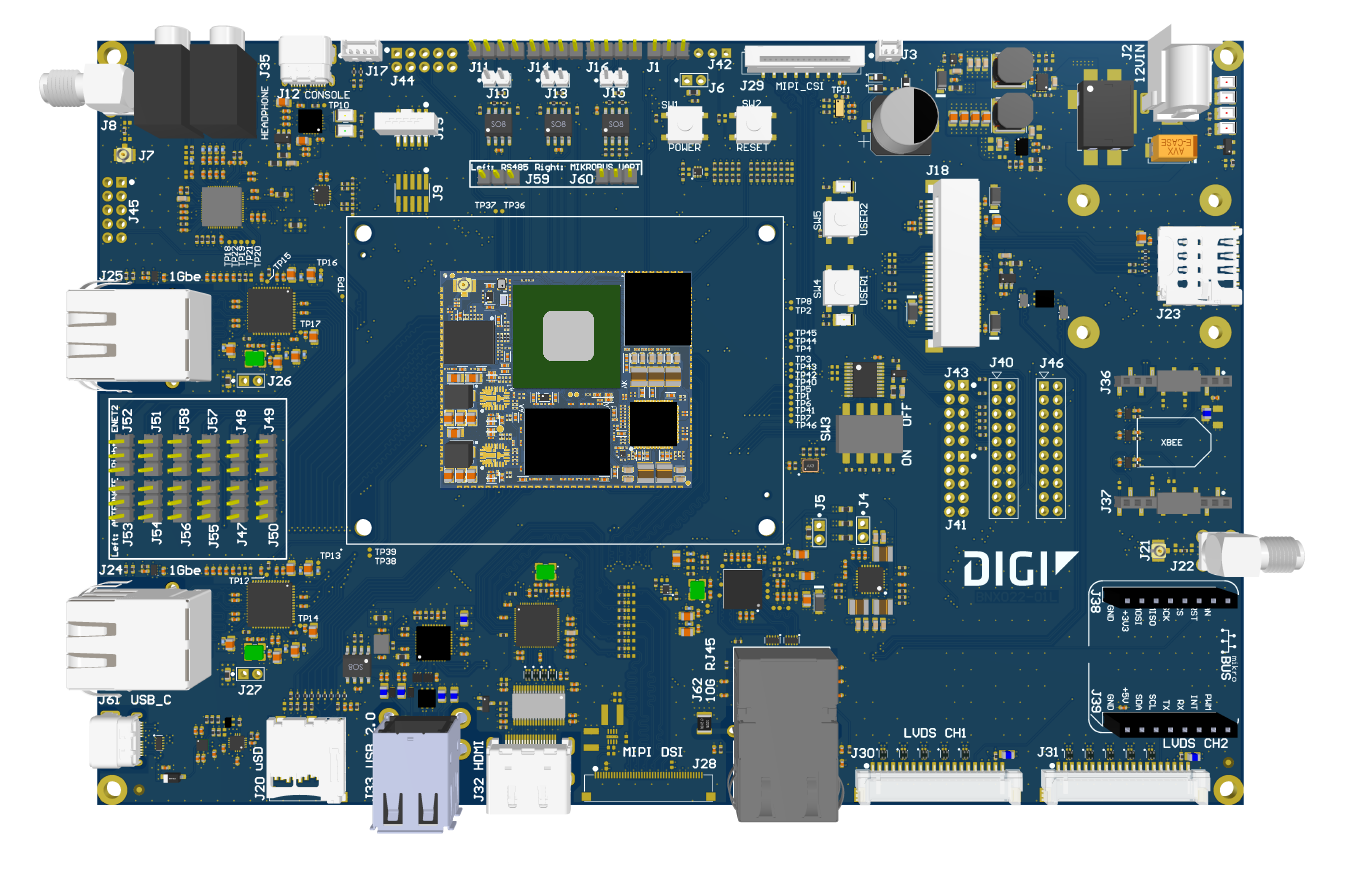

    ConnectCore 95 Development Kit

    ConnectCore 95 Development Kit

    1

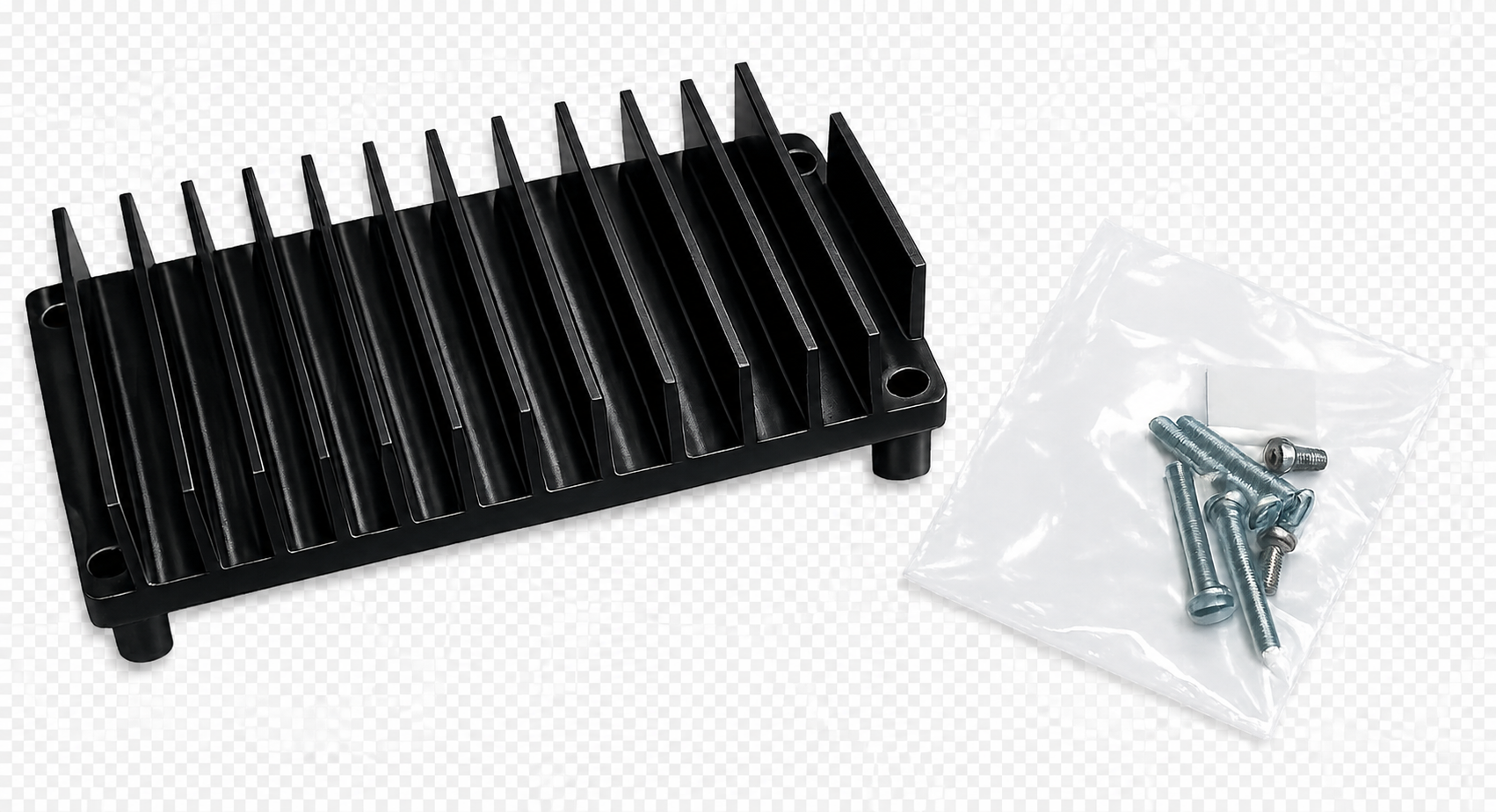

    Heat sink, thermal pad, and mounting screws

    Heatsink mounting kit

    1

    12V/4A power supply

    Power supply

    1

    USB type-C cable

    USB type-C cable

    1

    Whip antenna, Wi-Fi 2.4/5GHz

    Wi-Fi whip antenna

Additional requirements

  • Power cord

  • A 64-bit Linux machine for application development and system customization, with at least:

    • 4 GB of RAM

    • 4 CPU cores

    • 100 GB of free disk space

  • Additional recommended components not included in the kit:

    • Ethernet cable

    • HDMI monitor and cable

    • Extra USB type-C cable

    • FAT-formatted microSD card or USB stick
