To start working with the Wi-SUN Development Kit module, you need the following items:
-
A Wi-SUN Development Kit.
Verify that your Wi-SUN Development Kit contains the following components:
Qty. Part Image 1

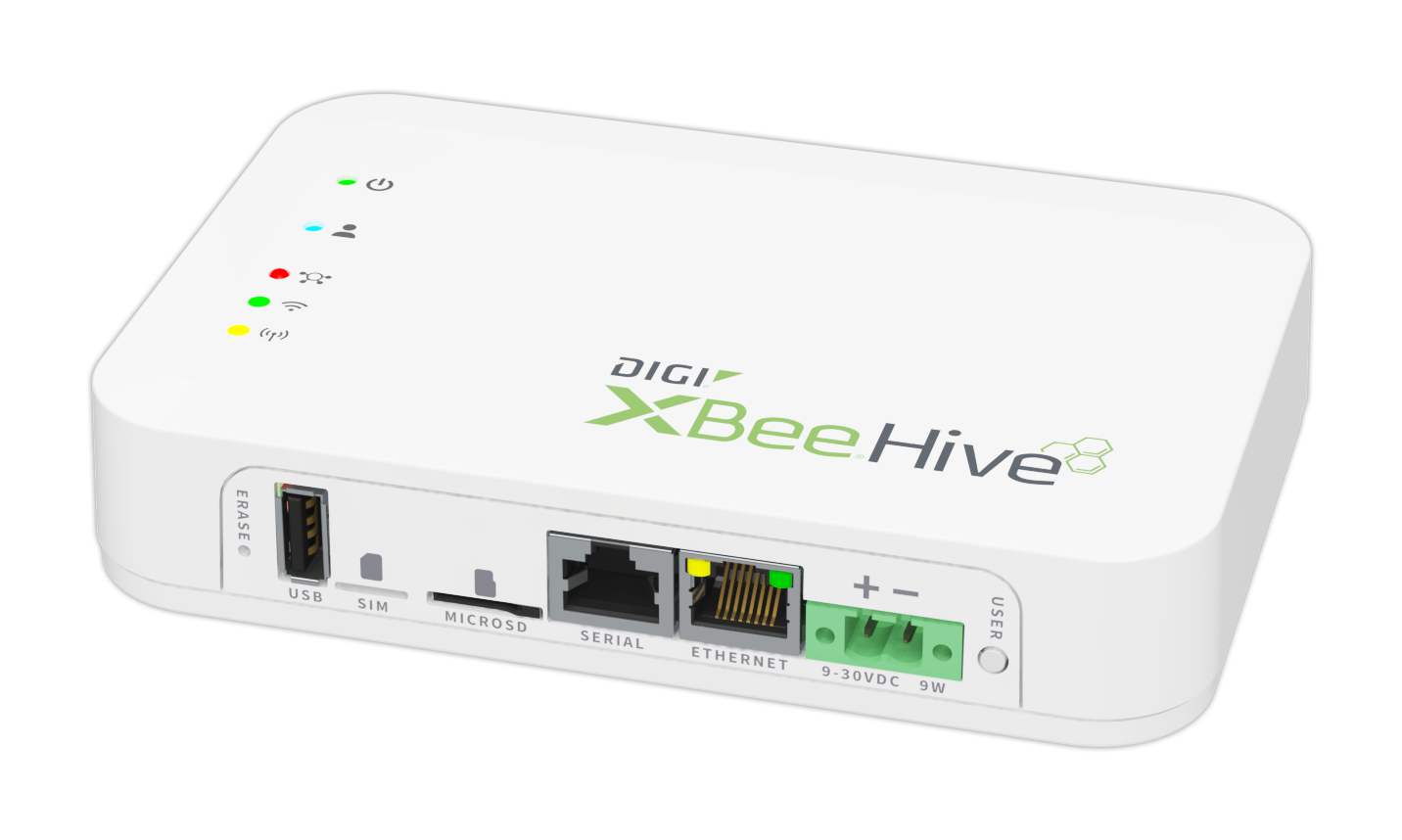

XBee Hive Wi-SUN
2

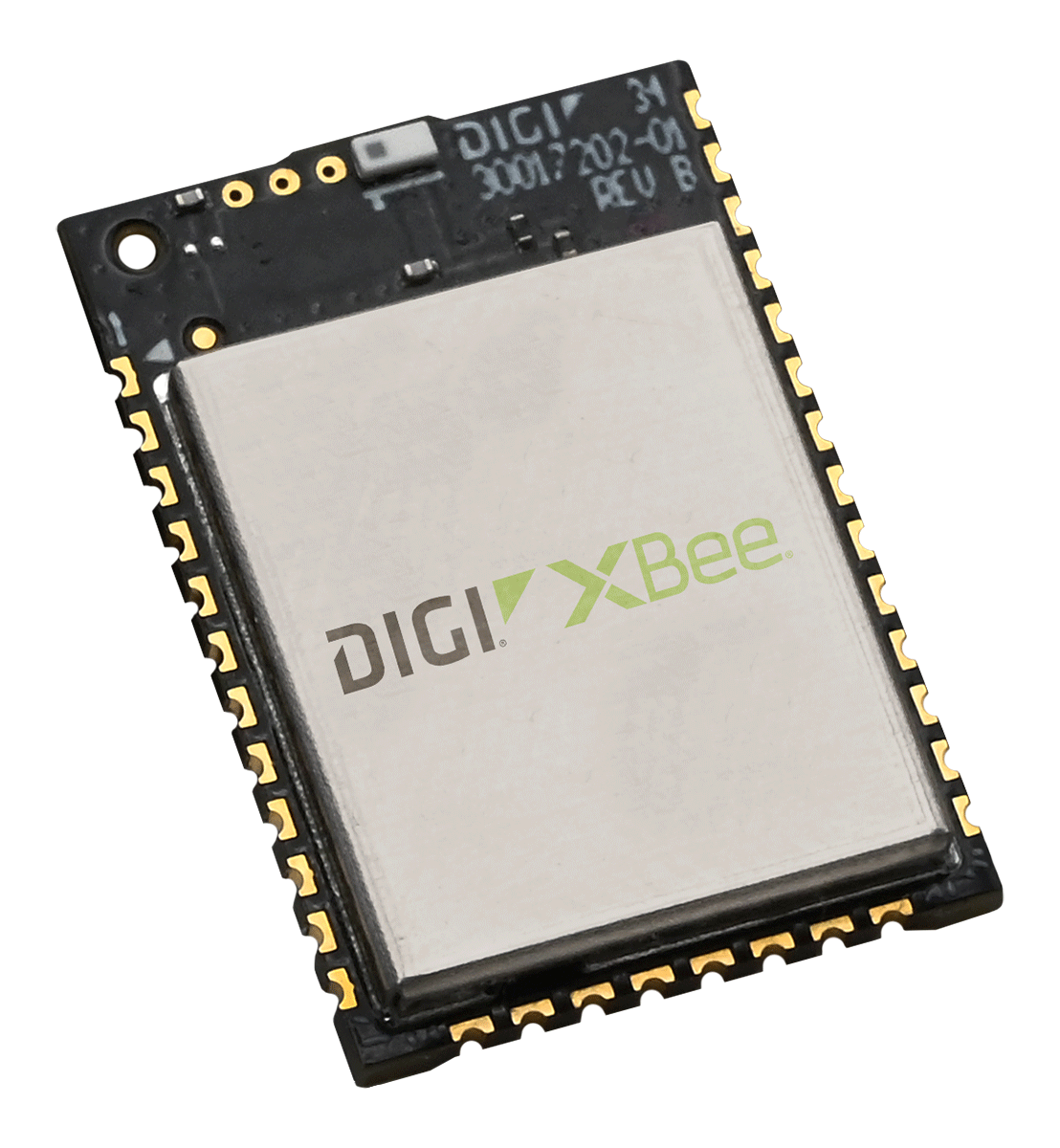

XBee Wi-SUN modules, U.FL antenna connector
2
XBIB-C development board
1

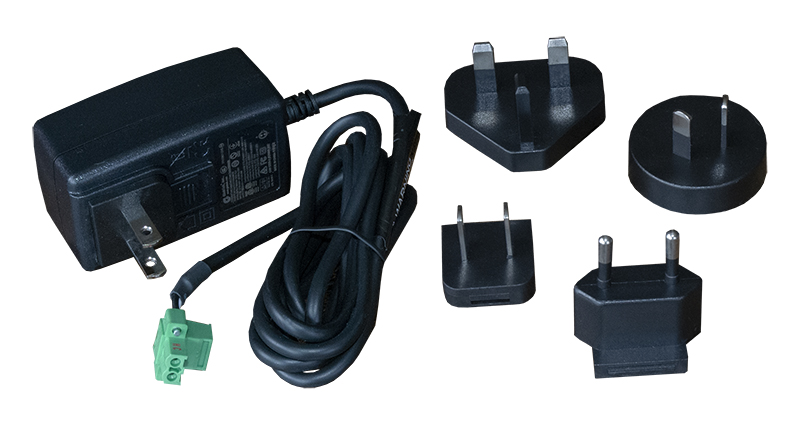

Power supply with plug tips for US, UK, EU, AU (76002104)
2

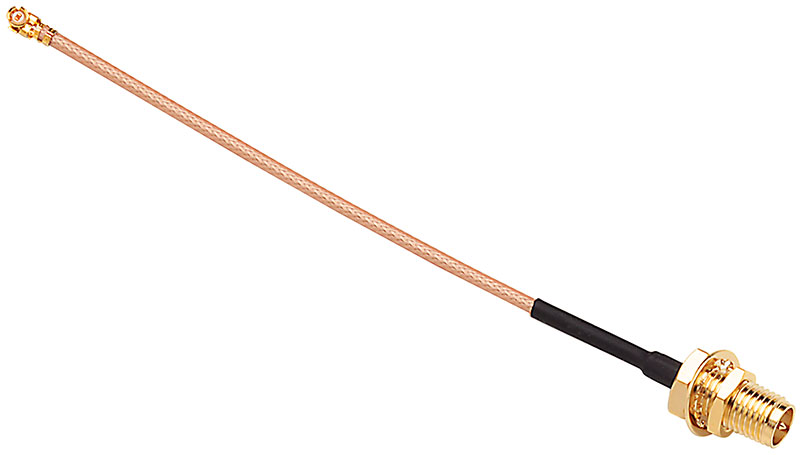

Pigtail adapter - U.FL to RPSMA (jf1r6-cr3-4i)
3

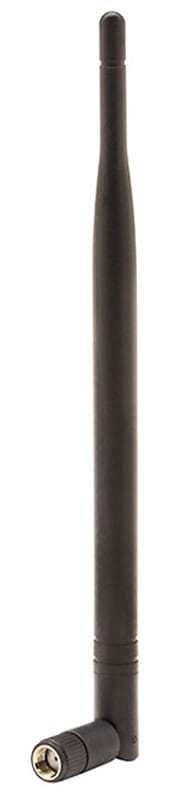

Dipole antenna 868MHz (a08-habuf-p5i) or 900MHz (A09-HASM-7)
2

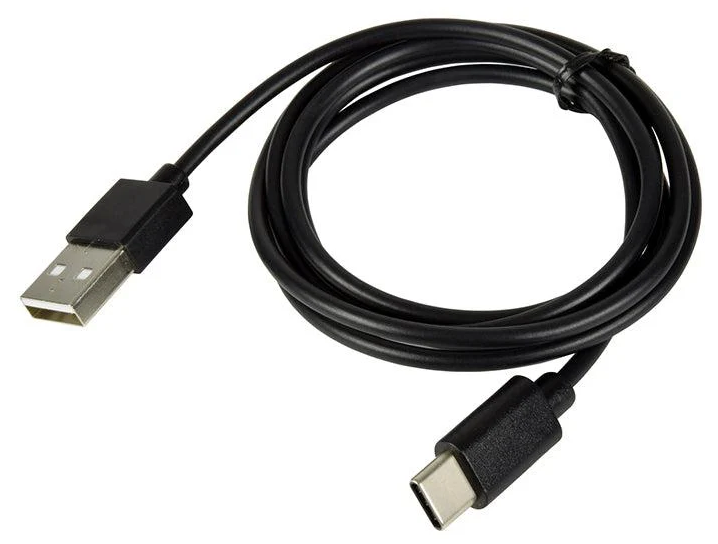

USB type-C cable
-
A computer with the minimum system requirements to install XBee Studio, as specified here.
-
Additional components not included in the kit:
-
Ethernet cable
-
