Configuration overview for a Z45 Controller in Digi Axess

You can configure the Z45 Controller features using the buttons in theDigi Axess Quick Panel page.

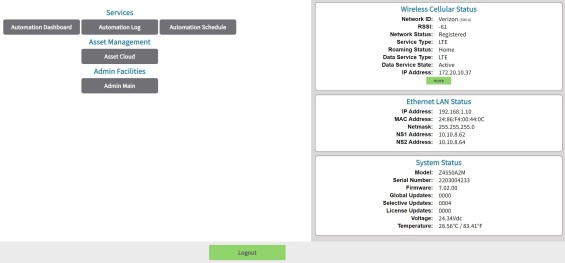

Quick Panel page

Services

Button Description
Automation Dashboard

The Automation Dashboard page graphically represents the information gathered by your devices.

  • View automation data in the Automation Dashboard
Automation Log

The Automation Control Log records the value or state of inputs and outputs over time. Inputs and outputs to be logged are selected during input and output configuration.

  • Automation Control Log

Asset Management

Button Description
User-defined name

You can use the button in the Asset Management section to quickly access the Digi Axess log in screen. The name on the button is user-defined, and can be updated.

  • Quick access to Digi Axess

Admin Facilities

Button Description
Admin Menu

Display additional feature buttons. For more information, see the Admin Menu table below.

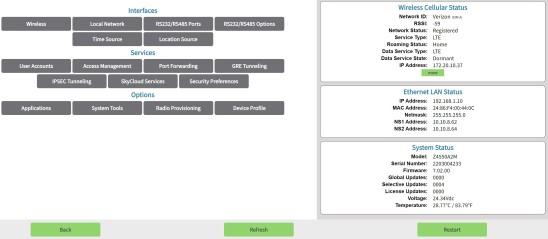

Admin Menu buttons





Interfaces

Button Description

Wireless

You can use the options in the Wireless Interface Configuration page to enable a SIM slot on the Z45 Controller, change the network connection type, and mange the APN profile configuration.

RS232/RS485 Ports

You can configure the RS485 port to so that the Z45 Controller can communicate with a sensor wired to the port.
Time Source

Configure the time synchronization between the Z45 Controller and Digi Axess.
Location Source

Configure the physical location of a device.

Services

Button Description
User Accounts

User accounts control who can log in to a device, and what privileges they have.
Access Management

For each page in the Z45 Controller web UI, specify which user level can view and/or edit that page. You can also rename the page, which is the name shown on the button you click to access a page.
Digi Axess Services

Configure the Digi Axess and DDNS services.

  • Rename the Digi Axess quick access button
Security Preferences

Configure security preferences for the following:

Options

Button   Description

System Tools

Backup/Restore

Backup and restore the configuration.


Firmware Update

Configure access to the firmware update server, and update the firmware.
  WAN Usage Tracking
Radio Provisioning

Radio Update

The Z45 Controller contains a multi-carrier, software-defined radio that you can configure for proper operation on a specific network.
