Display device tiles in a grid format

You can display device information in a grid format. Within the grid, you can filter and sort the devices.

Note You can also display devices in a table format. See Display devices in a table format.

Display the device grid

Log into Digi Axess.

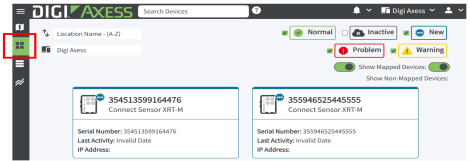

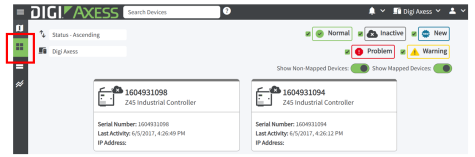

Click the grid icon on the toolbar on the left side of the screen to display the device grid.

Filter the devices by location status

A set of Digi Axess location staAssign a location name to a Z45 Controllertus filters displays at the top of the grid. You can use these to specify which types of devices should be displayed. The location status and color is determined by the Location Status items, which are a set of metrics tracked by the firmware.

Problem (Red): At least one of the Location Status items is red.
Warning (Yellow): At least one of the Location Status items is yellow, and none are red.
OK (Green): All of the Location Status items are green.
Inactive 24 hours (Gray): The device has not connected to Digi Axess within the last 24 hours. By default, this option is not selected.
New (Blue): The device is registered to your account but has not yet reported to Digi Axess. The device remains in this status until it connects to Digi Axess and reports a status.

Filter the devices by device group

You can filter the devices displayed on the map page by device group. From the Filter By Device Group list box, select a device group option.

The default is All Device Groups. Only the device groups associated with your login credentials display.

Sort the devices

You can sort the devices in ascending (A-Z, low-high) or descending order (Z-A, high-low). From the Sort By list box, select a sort order option:

Status - Ascending: inactive, green, yellow, red
Status - Descending: red, yellow, green, inactive
Location Name - (A-Z) 0 - 9, then A - Z
Location Name - (Z-A) Z - A, then 9 - 0
Serial Number - Ascending 0 - 9
Serial Number - Descending 9 - 0
Model - Ascending: blank, 0 - 9, A - Z
Model - Descending Z-A, 9-0, blank

Review the device grid

The device information in the grid is a subset of the information included in the Device Summary page.

Item	Description
Name banner	The colored location name banner shows the status of the location. The color is determined by the Location Status items, which are listed on the left pane. Green: All of the Location Status items are green. Yellow: At least one of the Location Status items is yellow. The rest may be green or yellow, but none are red. Red: At least one of the Location Status items is red. Gray: The device has not connected to Digi Axess within the last 24 hours.
Serial Number	The device's identifier. Connect Sensor+: IMEI Z45 Controller: Serial number
Model	The device model name.
Name	The name of the location. To change the location name, click the name to access the web UI for the device. Connect Sensor: Change the location name for a Connect Sensor Z45 Controller: Assign a location name to a Z45 Controller
Date and time	The date and time on which the device last connected to Digi Axess.
IP Address	The IP address assigned to the device.
Location	The latitude and longitude for the device's physical location. See the Assigning Coordinates table for details.
Location Status	A set of metrics tracked by the firmware. The color denotes the status of the metric. For detailed information, see Digi Axess Location Status information.
