Digi Axess Location Status information

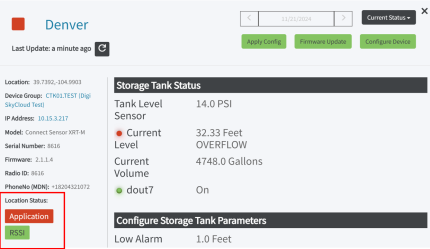

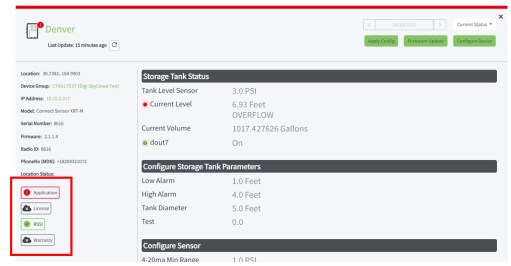

The location status information is a set of metrics tracked by the firmware and displays in the asset list.

The metric color is determined by the thresholds assigned to the metric.

Metric

 Description

Application

The application metric is a combination of the automation configurations defined for the device. Each automation is assigned thresholds that determine green, yellow, or red status. To determine the application metric status, Digi Axess considers the status of all of the automations.

  • Green: All automation configurations are green.

  • Yellow: At least one automation configuration is yellow. The rest may be green or yellow, but none can be red.

  • Red: At least one automation configuration is red.
Battery

A battery graphic describes the status of the battery.

  • Full green: Battery status good.

  • Partial green: Battery status good.

  • Yellow: Battery should be changed soon.

  • Red: Battery needs to be changed.

  • Dash: Battery is not plugged in.
Data Data is at the threshold defined in TCOPlus WAN management feature.
GPS

The number of minutes from the last location update during the defined interval.

  • Green: Equal to or above 900 minutes.

  • Yellow: Between 3600 and 900 minutes.

  • Red: Equal to or more than 3600 minutes.
RSSI

Signal strength.

  • Green: -88 or above.

  • Yellow: Less than -88.

  • Red: Less than -98.
Uptime

Percentage of time the network was available.

  • Green: Equal to or above 90%.

  • Yellow: Between 75% and 90%.

  • Red: Less that or equal to 75%.
