Display devices in a table format
You can display device information in a table format. Within the table, you can filter the devices.
Note You can also display devices in a grid format. See Display device tiles in a grid format.
Display the table
- Log into Digi Axess.

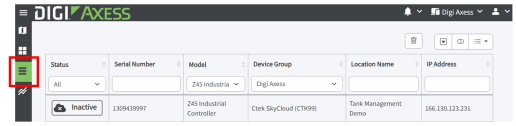

- Click the table icon on the toolbar on the left side of the screen to display the table.
- Click a row in the table to display the Device Summary page for the device.
Filter the devices
Use the columns to filter the devices in the table.
| Item | Description |
|---|---|
| Status |
Click the Status list box and select the location status you want to display. The location status is a set of metrics tracked by the firmware. The color denotes the status of the metric. For detailed information, see Digi Axess Location Status information. |
|
Serial Number |
Enter the device's identifier. The device list is limited to matching entries as you type.
|
|
Model |
Select a device model from the list box. |
| Device Group | Select a device group from the list box. |
| Location |
Enter the name of a device. The device list is limited to matching entries as you type. |
|
IP Address |
Enter the IP address of a device. The device list is limited to matching entries as you type. |
Select the columns to display
By default, all of the columns display in the table. You can de-select the columns that you don't want to display.
Click the Columns button to display a list of the columns. By default, Toggle All is selected and all columns display. De-select the columns that you don't want to display. You can re-select a column at any time.
If you de-select Toggle All, only the Status and Serial Number columns display.
Change the pagination of the table
Click the Hide/Show Pagination icon at the top of the page to remove pagination.
Display the devices as cards
You can display the table as a set of cards.
Click the Cards icon at the top of the page to display the table as cards. Click the icon again to return to the table view.
