Digi Axess map toolbar

Option	Description
Details	Use the icons in the toolbar in the left pane to display the map, device information, and device comparisons. The icons display by default. To expand the toolbar to include the icon names, click the hamburger icon in the upper left corner of the page. Map: Display the default map page. Grid: Display device information in a grid format. You can filter and sort the devices. See Display device tiles in a grid format. Table: Display device information in a table format. You can filter and sort the devices. See Display devices in a table format. Device comparison: Display application automation information for up to 10 devices in the selected group in graphs. See Create device comparison graphs in Digi Axess.
Search Devices	Search for a device by an identifying feature: serial number, model, device group, location name, or IP address. The search field is available only when the map page is in the Map or Grid views.
All Device Groups	Filter the devices displayed on the map page by device group. The default is All Device Groups. Only the device groups associated with your log in credentials display. Click the down arrow to display a list of groups to choose from.
User profile	The user name for the user currently logged in displays in the toolbar. Click the down arrow next to the address for a list of user profile management options. See Digi Axess User Profile menu options.
Notifications	View and manage any Digi Axess notifications. The colored dot on the bell shows how many new notifications you have and the color of the dot signifies the notification level. Green: A process has completed successfully. Yellow: At least one warning notification as been sent. A process has not completed as expected Red: At least one danger notification as been sent. A process has not completed and requires attention. Gray: Information about a process is provided. Click the down arrow next to the notification bell to display options. List of notifications: A list of the current notifications displays. Click the notification name to review the notification. Click X to remove the notification from this list. It is still available on the Notifications page. Click the Delete icon to delete the message. Manage all Notifications: Click to access the Notifications page.

Details

Use the icons in the toolbar in the left pane to display the map, device information, and device comparisons. The icons display by default. To expand the toolbar to include the icon names, click the hamburger icon in the upper left corner of the page.

Map: Display the default map page.
Grid: Display device information in a grid format. You can filter and sort the devices. See Display device tiles in a grid format.
Table: Display device information in a table format. You can filter and sort the devices. See Display devices in a table format.
Device comparison: Display application automation information for up to 10 devices in the selected group in graphs. See Create device comparison graphs in Digi Axess.

Search Devices

Search for a device by an identifying feature: serial number, model, device group, location name, or IP address.

The search field is available only when the map page is in the Map or Grid views.

All Device Groups

Filter the devices displayed on the map page by device group. The default is All Device Groups. Only the device groups associated with your log in credentials display.

Click the down arrow to display a list of groups to choose from.

User profile

The user name for the user currently logged in displays in the toolbar. Click the down arrow next to the address for a list of user profile management options. See Digi Axess User Profile menu options.

Notifications

View and manage any Digi Axess notifications.

The colored dot on the bell shows how many new notifications you have and the color of the dot signifies the notification level.

Green: A process has completed successfully.
Yellow: At least one warning notification as been sent. A process has not completed as expected
Red: At least one danger notification as been sent. A process has not completed and requires attention.
Gray: Information about a process is provided.

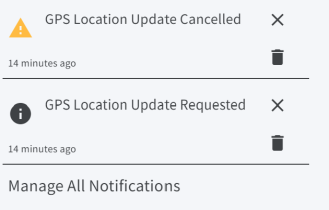

Click the down arrow next to the notification bell to display options.

List of notifications: A list of the current notifications displays.
- Click the notification name to review the notification.
- Click X to remove the notification from this list. It is still available on the Notifications page.
- Click the Delete icon to delete the message.
Manage all Notifications: Click to access the Notifications page.
