Digi Axess Administration Dashboard overview

When you access the Digi Axess Admin page, the Admin page dashboard displays.

The Digi Axess administration dashboard options are used to apply device configurations, view firmware update history, create and update devices and device groups, manage notification contacts and groups, and create and maintain user profiles.

Note You must have Admin or Device User privileges to access Digi Axess Administration page. However, only users with Admin privileges can access the Notification Management and User Management sections.

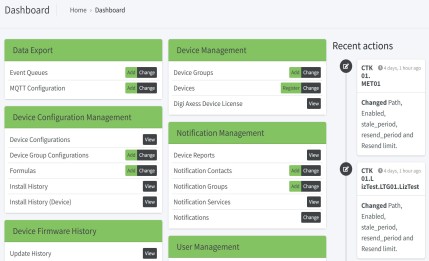

Dashboard

You can access the admin features from the dashboard or from the toolbar on the left of the page.

• Data Export: Export the data from Digi Axess.

  • Data Export: Manage MQTT configuration (Connect Sensor XRT-M only)

  • Data Export: Configure Event Queues

• Device Configuration Management: Apply a saved device configuration to a device or a group of devices.

  • Device Configuration Management: Manage in Digi Axess Admin

  • Formulas: Manage in Digi Axess Admin (Connect Sensor only)

• Device Firmware History: Review the Digi Axess firmware updates that have been applied,

  • Device Firmware History: Manage in Digi Axess Admin.

• Device Management: Manage device groups and apply a configuration to a device.

  • Device Management: Manage in Digi Axess Admin.

• Notification Management: Manage Digi Axess contact information and view the available services.

  • Notification Management: Manage in Digi Axess Admin.

  Note Only users with Admin privileges can access the Notification Management section.

• User Management: Manage Digi Axess users.

  • User profiles: Manage in Digi Axess Admin.

  Note Only users with Admin privileges can access the User Management section.

Map icon

Click the map icon in the upper right corner of the page to return to the Digi Axess map. See Digi Axess map overview.

User profile icon

Click the profile icon in the upper right corner of the page for more features.

• Change Password: Click to change your Digi Axess password. See Change your Digi Axess password.

• Log out: Click to log out of Digi Axess. The Digi Axess log in page displays.

Recent Actions

The Recent Actions section on the right side of the page shows a time line list of the changes the user that is logged in has made. You can also review the history for device groups, devices, notification contacts, and notification groups in the associated page. See Review the update history.
