Step 3: Attach antenna cables to the RMS Z45

For best results, you should attach two cellular antenna cables to the RMS Z45. The antenna cables are attached to the top of the enclosure with a sticker.

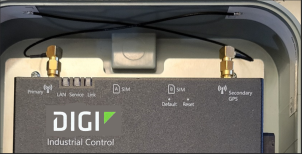

1. Orient the RMS Z45 as shown.



2. Connect a cellular antennas to an antenna connector.

3. While gripping the metal connector section with your thumb and forefinger, tighten until secure.

4. Repeat the process for the second antenna.





NEXT STEP: Proceed to Step 4: Attach an accessory to the RMS Z45.
