Review a device group configuration change event

You can review the details of a configuration change event for the devices in a group from the Device Group Configuration Updates audit log.

Each tab shows different information:

Configuration Change: Click the Configuration Change tab to display detailed information about the update. Refer to the table below for information about the fields in the page.
Existing Configuration: Click the Existing Configuration tab to display the former configuration. You can click the Code/Tree toggle to choose the display format: as code or in a tree layout.
Updated Configuration: Click the UpdatedConfiguration tab to display the current configuration. You can click the Code/Tree toggle to choose the display format: as code or in a tree layout.

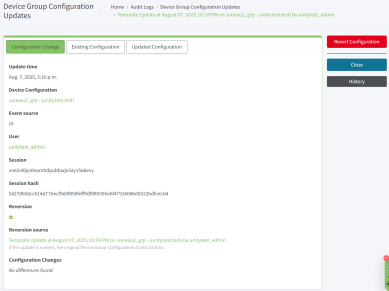

Reversion

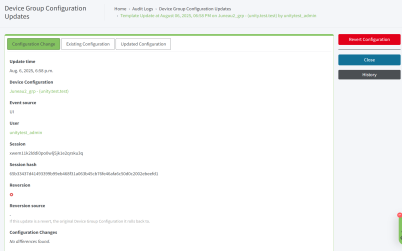

No reversion

Configuration Change

Field or Button	Description
Update time	The date and time on which the configuration update started.
Device Configuration	The device configuration that was applied to the devices in the group. The device configuration is identified by device group and name: device group (device name). Click the device configuration link to view information in the Device Configurations page.
Event Source	Event source: The source from which the update was started. Options are: UI: Initiated from the Digi Axess user interface. API: Initiated from Digi Axess REST API.
User	The user logged in when the update was started. Click the user link to view information about the user in the Users page.
Session Hash	The session that was active when the update was started.
Reversion	Denotes whether a reversion to a previous configuration version has occurred. Green circle: The configuration update was part of a reversion to a previous configuration version. Red circle: The configuration update was not made as part of a reversion to a previous configuration version.
Reversion Source	The source of the reversion is listed. Click the link to display the changes in the Configuration Changes field. If this update is a reversion to a previous configuration version, the reversion source is the original device group configuration it rolls back to. Note This field has an entry only if the reversion icon is a green circle.
Configuration Changes	The changes between the current version and previous version display.
