Review the device group configuration updates audit log

You can review information about the saved/shared configuration updates for the devices in a device group.

  1. Access the Digi Axess Admin page. You must have Admin or Device User privileges to access this page.

  2. From the Audit Logs section in the Admin dashboard, click Device Group Configuration Updates or click View next to that link. As an alternative, click Audit Logs > Device Group Configuration Updates from the dashboard pane on the left of the screen.

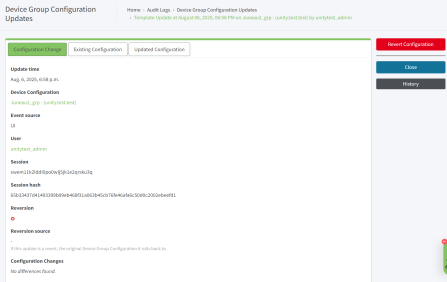

    The Device Group Configuration Updates page displays.

  3. Configuration update details for the devices displays in the page.

    • Update time: The date and time at which the configuration update started. Click the update time link to open the Device Group Configuration Updates page for this configuration event.


    • Device Configuration: The device configuration that was applied to the devices in the group. The device configuration is identified by device group and name: device group (device name).

    • Event source: The source from which the update was started. Options are:

      • UI: Initiated from the Digi Axess user interface.

      • API: Initiated from Digi Axess REST API.

    • User: The user logged in when the update was started.

    • Session Hash: The session that was active when the update was started.

    • Reversion: Denotes whether a reversion to a previous configuration version has occurred.

      • Green circle: The configuration update was part of a reversion to a previous configuration version.

      • Red circle: The configuration update was not made as part of a reversion to a previous configuration version.

    • Revert Configuration button: Click Revert Configuration to revert the configuration for the devices in the device group back to the configuration that was installed before the previous update.

  4. You can use the filters in any combination to limit the list. Select from the options and then click Search.

    • Update time: Select an update time option from the list box.

    • Template: Select a configuration template option from the list box.

    • User: Select a user from the list box.

    • Search field: Enter a search string.
