Digi Axess Location Status information

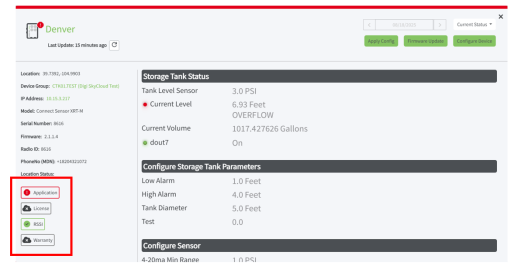

The location status information is a set of metrics tracked by the firmware and displays in the asset list.

The metric color is determined by the thresholds assigned to the metric.

Metric	Description
Application	The application metric is a combination of the automation configurations defined for the device. Each automation is assigned thresholds that determine green, yellow, or red status. To determine the application metric status, Digi Axess considers the status of all of the automations. Green: All automation configurations are green. Yellow: At least one automation configuration is yellow. The rest may be green or yellow, but none can be red. Red: At least one automation configuration is red.
Battery	A battery graphic describes the status of the battery. Full green: Battery status good. Partial green: Battery status good. Yellow: Battery should be changed soon. Red: Battery needs to be changed. Dash: Battery is not plugged in.
RSSI	Signal strength. Green: -88 or above. Yellow: Less than -88. Red: Less than -98.
Warranty	Warranty status of the device. Green: Active Red: Expired Gray: Unknown For more information about warranties, see Warranties: Review device warranties.
