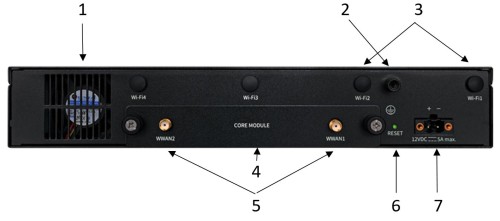

Back panel



Item Name Description
1 Fan Provides air flow for the device.
2 Earth grounding connector

Grounding screw receptacle. The standoff is 9 mm deep and takes a metric M4 screw.
3 Wi-Fi 1

Wi-Fi 2

Wi-Fi antenna mounts.

  • If your device does not support Wi-Fi, the Wi-Fi antenna mounts are not included and the space is covered with a black button.

  • If your model supports Wi-Fi, two antenna mounts are available. Attach Wi-Fi antennas to complete a Wi-Fi connection. See Connect the device to the network using Wi-Fi.
4

Core Module

Insert a Digi Core Modem to complete a cellular connection. Use these thumb screws to remove the CORE module plate. You will need to remove this plate to insert the CORE module.

See Create a cellular connection using the CORE module.
5

WWAN1

WWAN2

Attach cellular antennas if the CORE module is used to complete a cellular connection. The antenna mounts are covered with a black button that can be removed.

See Create a cellular connection using the CORE module.
6 RESET

Press the RESET button to reset the device to the factory default settings. See Use the RESET button to reset your device to the factory defaults.
7 Power

Connect the power supply to the device. See Power the Connect EZ 8.
