Configure domain name groups

Domain name groups are used to categorize serveral domains names in one group. For example, digi.com and devicecloud.com could be grouped together in an intelliFlow group called Digi.



  Web

  1. Log into Digi Remote Manager, or log into the local Web UI as a user with full Admin access rights.
  2. Access the device configuration:

    1. Locate your device as described in Use Digi Remote Manager to view and manage your device.
    2. Click the Device ID.
    3. Click Settings.
    4. Click to expand Config.

    1. On the menu, click System. Under Configuration, click Device Configuration.

      The Configuration window is displayed.

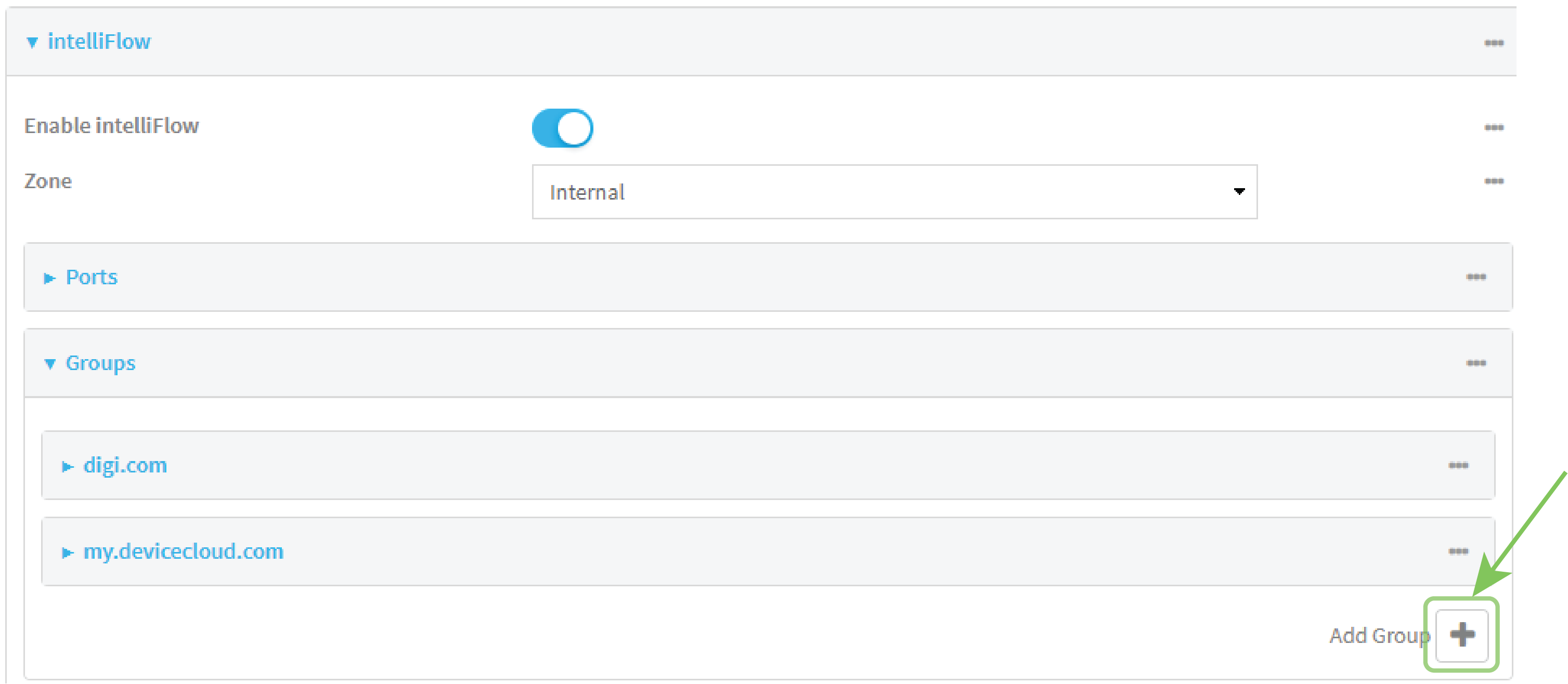

  3. Click Monitoring > intelliFlow > Groups.
  4. Click to add a domain.

  5. Label is optional.
  6. For Domain name, type digi.com.
  7. For Group, type Digi.
  8. Click to add a another port.
  9. For Domain name, type devicecloud.com.
  10. For Group, type Digi.
  11. Click Apply to save the configuration and apply the change.



  1. Select the device in Remote Manager and click Actions > Open Console, or log into the IX40 local command line as a user with full Admin access rights.

    Depending on your device configuration, you may be presented with an Access selection menu. Type admin to access the Admin CLI.

  2. At the command line, type config to enter configuration mode:

    > config
(config)>

  3. Add a group:
    (config)> add monitoring intelliflow groups end
(config monitoring intelliflow groups 1)>
  4. Set the domain name:
    (config monitoring intelliflow groups 1)> domian digi.com
(config monitoring intelliflow groups 1)>
  5. Set the group name:
    (config monitoring intelliflow groups 1)> group Digi
(config monitoring intelliflow groups 1)>
  6. Add another port:
    (config monitoring intelliflow groups 1)> add .. end
(config monitoring intelliflow groups 2)>
  7. Set the port number:
    (config monitoring intelliflow groups 2)> domain devicecloud.com
(config monitoring intelliflow groups 2)>
  8. Set the service type:
    (config monitoring intelliflow groups 2)> group Digi
(config monitoring intelliflow groups 2)>
  9. Save the configuration and apply the change.
    (config)> save
Configuration saved.
>
  10. Type exit to exit the Admin CLI.

    Depending on your device configuration, you may be presented with an Access selection menu. Type quit to disconnect from the device.
