Configuration for extreme thermal conditions

The IX40 has been verified to operate in the temperate range of -40C to +70C/-4F to +158F.

However, in extreme temperature conditions (up to +70C/+158F), you must add a Quality of Service (QOS) rule that limits the upload speed of the modem to 1 Mpbs. For less extreme temperatures, a modem upload speed of up to 10 Mpbs is acceptable.

  1. Log into Digi Remote Manager, or log into the local Web UI as a user with full Admin access rights.
  2. Access the device configuration:

    1. Locate your device as described in Use Digi Remote Manager to view and manage your device.
    2. Click the Device ID.
    3. Click Settings.
    4. Click to expand Config.

    1. On the menu, click System. Under Configuration, click Device Configuration.

      The Configuration window is displayed.

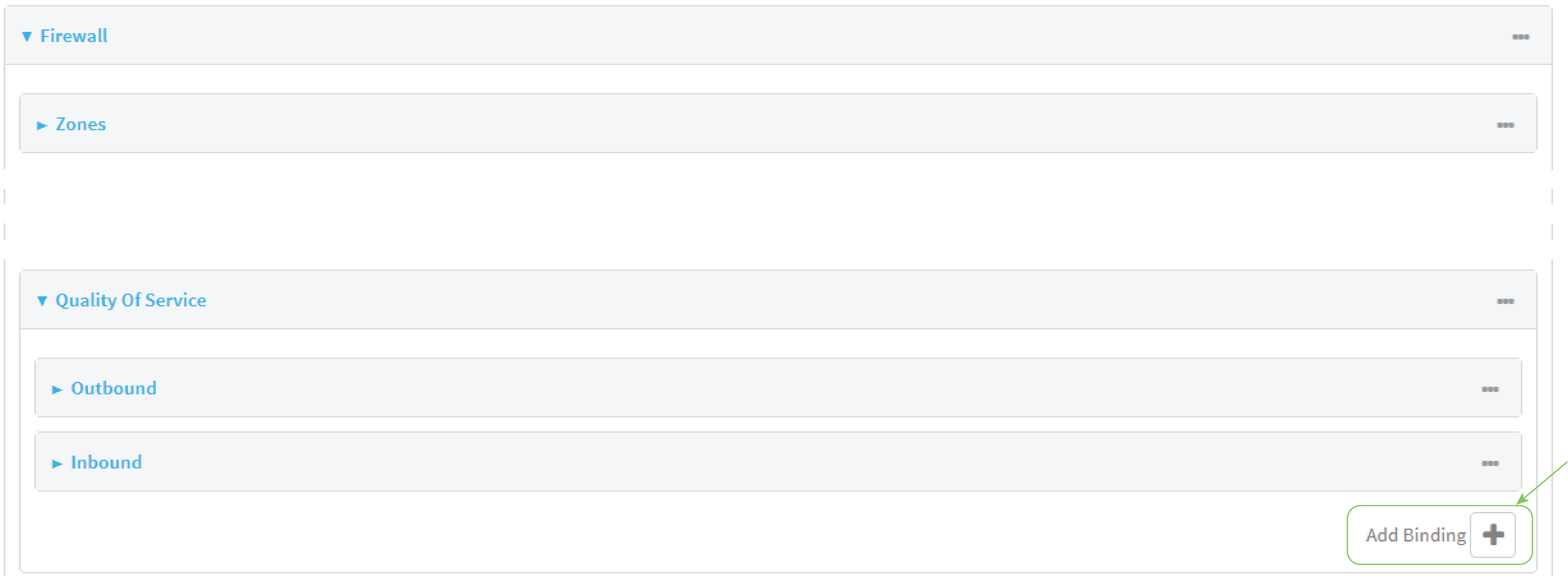

  3. Click Firewall > Quality of Service.
  4. For Add Binding, click .

  5. For Interface, select Modem.
  6. For Interface bandwidth (Mbit), type 1.
  7. Click to expand Policy.
  8. For Add Policy, click .
  9. Click to expand Rule.
  10. For Add Rule, click .

    The default settings for the policy and rule are sufficient.

  11. Click Apply to save the configuration and apply the change.
  1. Select the device in Remote Manager and click Actions > Open Console, or log into the IX40 local command line as a user with full Admin access rights.

    Depending on your device configuration, you may be presented with an Access selection menu. Type admin to access the Admin CLI.

  2. At the command line, type config to enter configuration mode:

    > config
(config)>

  3. Add a binding:
    (config)> add firewall qos end
(config firewall qos 2)>
  4. Set the interface to the modem interface:
    (config firewall qos 2)> interface /network/interface/modem
(config firewall qos 2)>
  5. Set the maximum egress bandwidth of the interface to 1:
    (config firewall qos 2)> bandwidth 1
(config firewall qos 2)>
  6. Create a policy:
    (config firewall qos 2)> add policy end
(config firewall qos 2 policy 0)>
  7. Add a rule to the policy:
    (config firewall qos 2 policy 0)> add rule end
(config firewall qos 2 policy 0 rule 0)>

    The default settings for the policy and rule are sufficient.

  8. Save the configuration and apply the change.
    (config firewall qos 2 policy 0 rule 09)> save
Configuration saved.
>
  9. Type exit to exit the Admin CLI.

    Depending on your device configuration, you may be presented with an Access selection menu. Type quit to disconnect from the device.
