Enable or disable a packet filtering rule

To enable or disable a packet filtering rule:



  Web

  1. Log into Digi Remote Manager, or log into the local Web UI as a user with full Admin access rights.
  2. Access the device configuration:

    1. Locate your device as described in Use Digi Remote Manager to view and manage your device.
    2. Click the Device ID.
    3. Click Settings.
    4. Click to expand Config.

    1. On the menu, click System. Under Configuration, click Device Configuration.

      The Configuration window is displayed.

  3. Click Firewall > Packet filtering.
  4. Click the appropriate packet filtering rule.

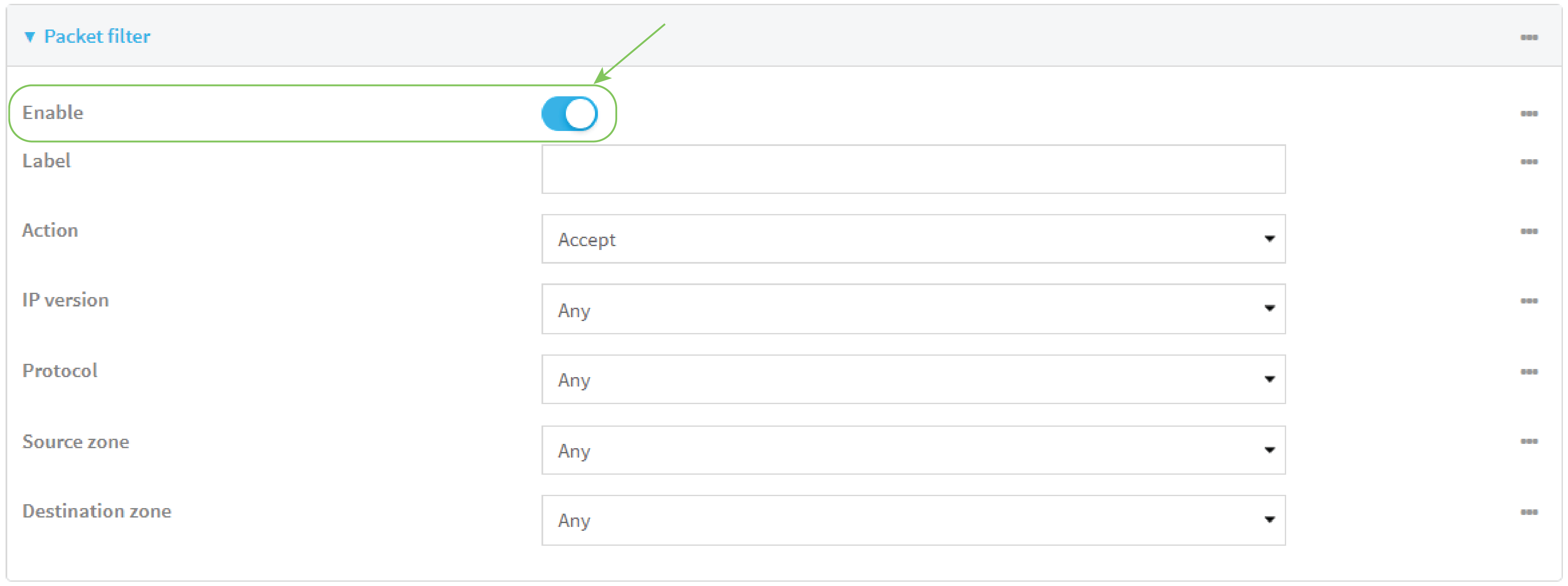

  5. Click Enable to toggle the rule between enabled and disabled.

  6. Click Apply to save the configuration and apply the change.
  1. Select the device in Remote Manager and click Actions > Open Console, or log into the TX40 local command line as a user with full Admin access rights.

    Depending on your device configuration, you may be presented with an Access selection menu. Type admin to access the Admin CLI.

  2. At the command line, type config to enter configuration mode:

    > config
(config)>

  3. Determine the index number of the appropriate port forwarding rule:
    (config)> show firewall filter
0
    action accept
    dst_zone any
    enable true
    ip_version any
    label Allow all outgoing traffic
    protocol any
    src_zone internal
1
    action drop
    dst_zone internal
    enable true
    ip_version any
    label My packet filter
    protocol any
    src_zone external
(config)>
  4. To enable a packet filtering rule, use the index number with the enable true command. For example:
    (config)> firewall filter 1 enable true
  5. To disable a packet filtering rule, use the index number with the enable false command. For example:
    (config)> firewall filter 1 enable false
  6. Save the configuration and apply the change.
    (config)> save
Configuration saved.
>
  7. Type exit to exit the Admin CLI.

    Depending on your device configuration, you may be presented with an Access selection menu. Type quit to disconnect from the device.
