Configure WAN/WWAN priority and default route metrics
The IX30 device is preconfigured with one Wide Area Network (WAN), named ETH1
When a WAN is initialized, the IX30 device automatically adds a Setup IP route for the WAN. The priority of the WAN is based on the metric of the default route, as configured in the WAN's IPv4 and IPv6 metric settings.
Assigning priority to WANs

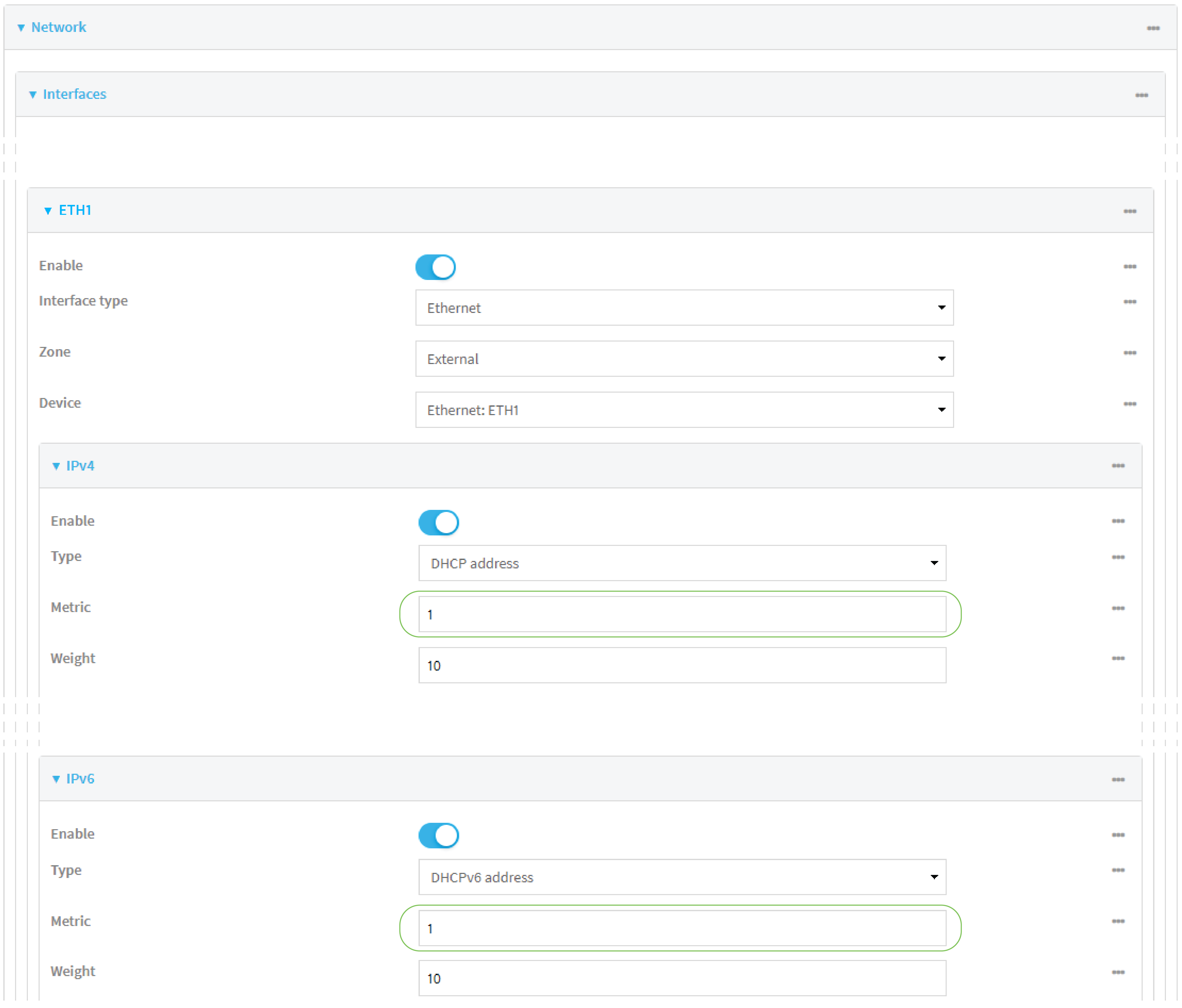

By default, the IX30 device's WAN (ETH1) is configured with the lowest metric (1), and is therefor the highest priority WAN. By default, the Wireless WAN (Modem)

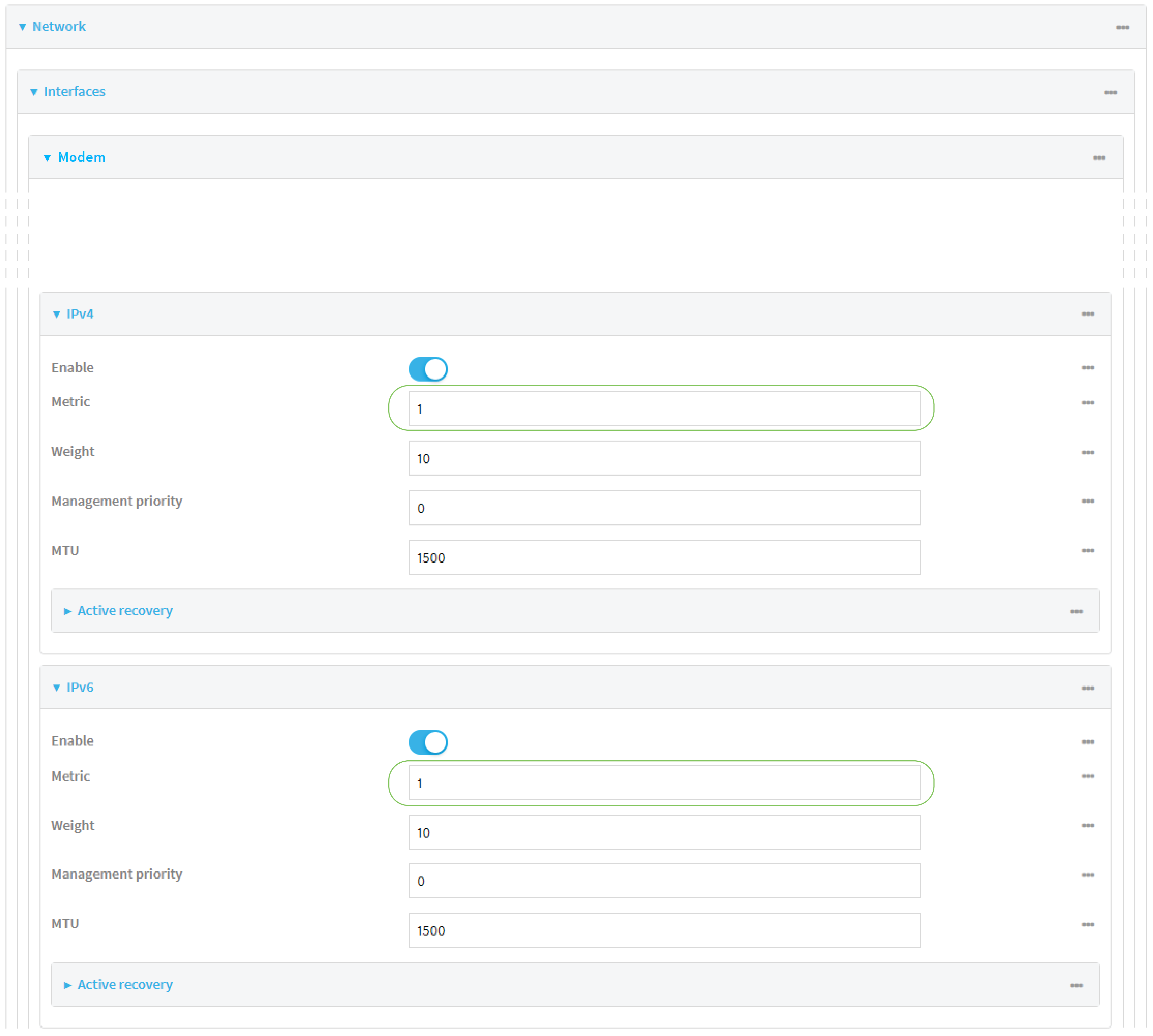

Example: Configure cellular connection as the primary WAN, and the Ethernet connection as backup
Required configuration items
- Configured WAN and WWAN interfaces. This example uses the preconfigured ETH1 and Modem interfaces.
- The metric for each WAN.
