Delete a WAN

Follow this procedure to delete any WANs that have been added to the system. You cannot delete the preconfigured WAN, ETH1.



  Web

  1. Log into Digi Remote Manager, or log into the local Web UI as a user with full Admin access rights.
  2. Access the device configuration:

    1. Locate your device as described in Use Digi Remote Manager to view and manage your device.
    2. Click the Device ID.
    3. Click Settings.
    4. Click to expand Config.

    1. On the menu, click System. Under Configuration, click Device Configuration.

      The Configuration window is displayed.

  3. Click Network > Interfaces.

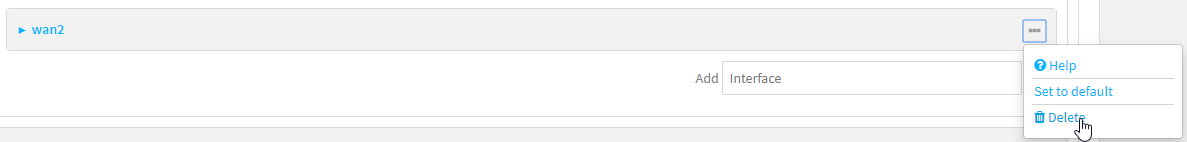

  4. Click the menu icon (...) next to the name of the WAN to be deleted and select Delete.

  5. Click Apply to save the configuration and apply the change.
  1. Select the device in Remote Manager and click Actions > Open Console, or log into the Connect EZ local command line as a user with full Admin access rights.

    Depending on your device configuration, you may be presented with an Access selection menu. Type admin to access the Admin CLI.

  2. At the command line, type config to enter configuration mode:

    > config
(config)>

  3. Use the del command to delete the WAN. For example, to delete a WAN named my_wan:
    (config)> del network interface my_wan
  4. Save the configuration and apply the change.
    (config)> save
Configuration saved.
>
  5. Type exit to exit the Admin CLI.

    Depending on your device configuration, you may be presented with an Access selection menu. Type quit to disconnect from the device.
