Enable intelliFlow

Required configuration items

Additional configuration items

To enable intelliFlow:



  Web

  1. Log into Digi Remote Manager, or log into the local Web UI as a user with full Admin access rights.
  2. Access the device configuration:

    1. Locate your device as described in Use Digi Remote Manager to view and manage your device.
    2. Click the Device ID.
    3. Click Settings.
    4. Click to expand Config.

    1. On the menu, click System. Under Configuration, click Device Configuration.

      The Configuration window is displayed.

  3. Click Monitoring > intelliFlow.

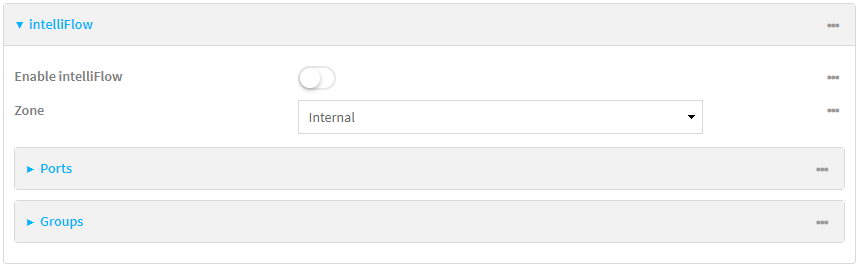

    The intelliFlow configuration window is displayed.

  4. Click Enable intelliFlow.
  5. For Zone, select the firewall zone. Internal clients that are being monitored by IntelliFlow should be present on the specified zone.
  6. Click Apply to save the configuration and apply the change.
  1. Select the device in Remote Manager and click Actions > Open Console, or log into the Connect EZ local command line as a user with full Admin access rights.

    Depending on your device configuration, you may be presented with an Access selection menu. Type admin to access the Admin CLI.

  2. At the command line, type config to enter configuration mode:

    > config
(config)>

  3. Enable IntelliFlow:
    (config)> monitoring intelliflow enable true
  4. Set the firewall zone. Internal clients that are being monitored by IntelliFlow should be present on the specified zone:
    1. Determine available zones:
      (config)> monitoring intelliflow zone ?

Zone: The firewall zone which is assigned to the network interface(s) that
intelliFlow will see as internal clients.  intelliFlow relies on an internal to
external relationship, where the internal clients are present on the zone specified.
Format:
  any
  dynamic_routes
  edge
  external
  internal
  ipsec
  loopback
  setup
Default value: internal
Current value: internal

(config)>
    2. Set the zone to be used by IntelliFlow:
      (config)> monitoring intelliflow zone my_zone
  5. Save the configuration and apply the change.
    (config)> save
Configuration saved.
>
  6. Type exit to exit the Admin CLI.

    Depending on your device configuration, you may be presented with an Access selection menu. Type quit to disconnect from the device.
