Update the DAL OS system firmware

Digi’s DAL OS firmware for Digi devices provides a managed, secure embedded operating system foundation that supports scheduled and ad-hoc updates to ensure device integrity and performance over time. DAL OS firmware can be updated locally using the device’s DAL OS Web UI console or the CLI console. Devices can be updated locally or remotely using Digi Remote Manager, which enables local updates on individual devices through the DAL OS Web UI or CLI consoles, and remote updates across multiple devices simultaneously using templates. For more information about updating firmware using Digi Remote Manager, see About the DAL OS firmware in the Cellular documentation portal.

The AnywhereUSB Plus operating system firmware images consist of a single file with the following naming convention:

platform-version.bin

For example, AnywhereUSB Plus-25.2.54.xxx

Certificate management for firmware images

The system firmware files are signed to ensure that only Digi-approved firmware load onto the device. The AnywhereUSB Plus device validates the system firmware image as part of the update process and only successfully updates if the system firmware image can be authenticated.

Downgrading

Downgrading to an earlier release of the firmware may result in the device configuration being erased.

Downgrading from firmware version 22.2.9.x

Beginning with firmware version 22.2.9.x, the AnywhereUSB Plus device uses certificate-based communication for enhanced security when connecting to Digi Remote Manager. If you downgrade your firmware from version 22.2.9.x to version 21.11.x or previous, your device will no longer be able to communicate with Remote Manager.

To remedy this issue, select the device in Remote Manager and select Actions > Reset Device Certificate.



  Web

  1. Log into the AnywhereUSB Plus WebUI as a user with full Admin access rights.

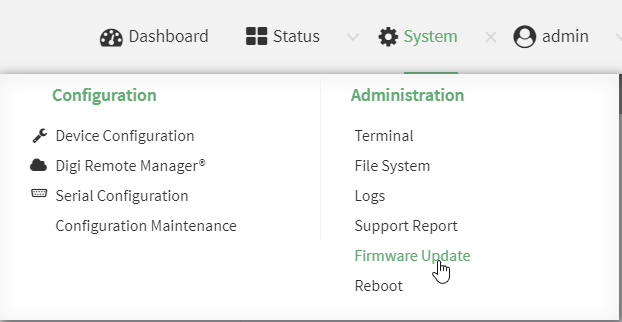

  2. On the main menu, click System. Under Administration, click Firmware Update.

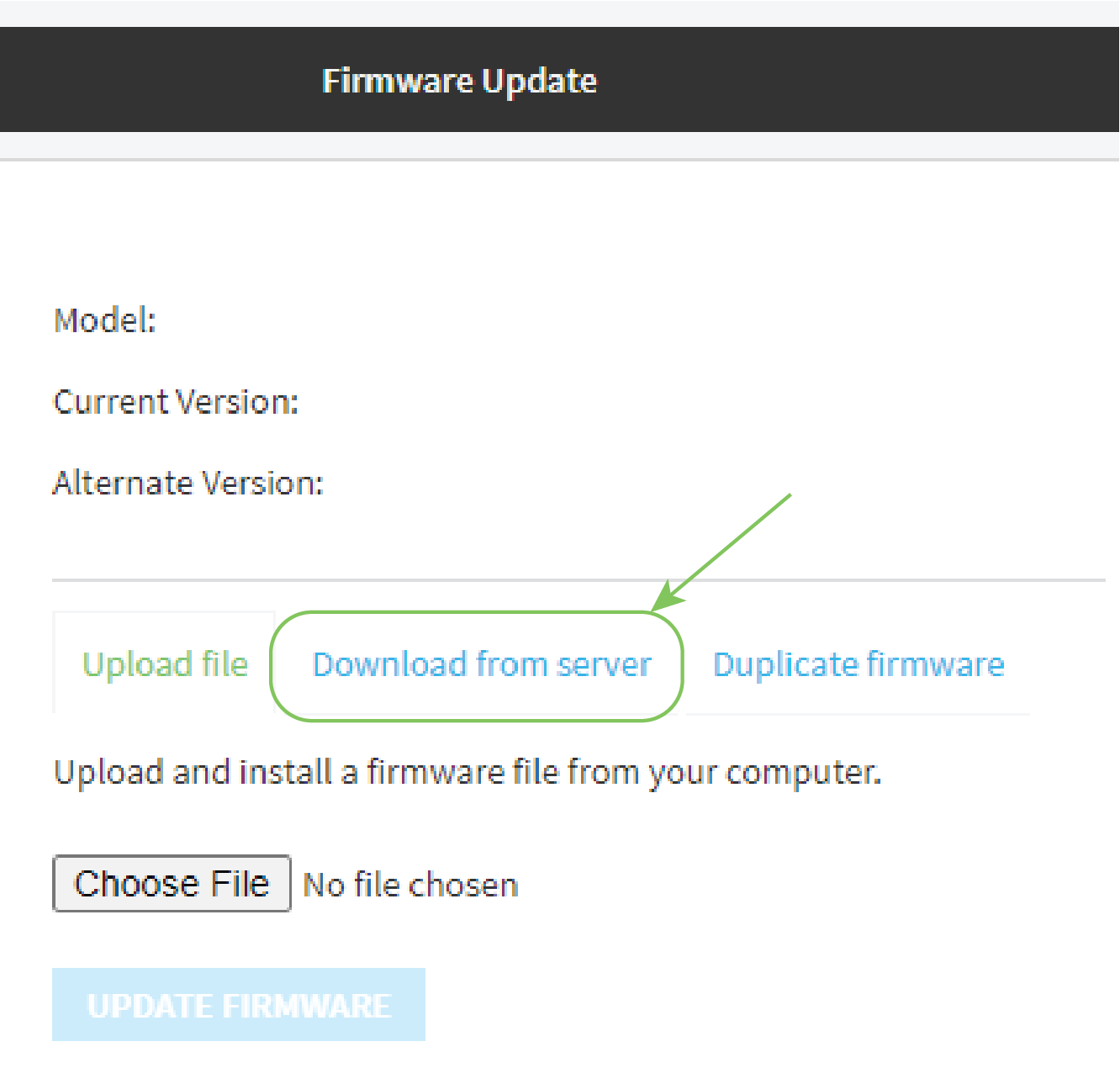

  3. Click Download from server.

  4. For Version:, select the appropriate version of the device firmware.
  5. Click Update Firmware.

    During the firmware update process, the port LEDs change color and action to show the progress of the firmware update:

    • The LED for USB port 1 flashes white when the firmware update begins.

    • The LED for USB port 1 turns solid white while waiting for the Hub to reboot.

    • The LEDs for all ports turn solid white after the Hub reboots.

    • The LEDs for all ports flash white as the firmware loads.

    • When the update is complete, all USB port LEDs are off, except for the LEDs for the ports that are in use.

    Note If the firmware update fails, the LED for port 1 turns solid red and the Hub does not reboot.

  1. Select the device in Remote Manager and click Actions > Open Console, or log into the AnywhereUSB Plus local command line as a user with full Admin access rights.

    Depending on your device configuration, you may be presented with an Access selection menu. Type admin to access the Admin CLI.

  2. >Use the system firmware ota check command to determine if new modem firmware is available on the Digi firmware repository.
    > system firmware ota check
Current firmware version is 25.12
Checking for latest AnywhereUSB Plus firmware...
Newest firmware version available to download is '26.2.147.55'
Device firmware update from '25.12' to '26.2.147.55' is needed
>
  3. Use the modem firmware ota list command to list available firmware on the Digi firmware repository.
    > system firmware ota list
25.12
26.2.147.55
>
  4. Perform an OTA firmware update:
    • To perform an OTA firmware update by using the most recent available firmware from the Digi firmware repository:
      1. Update the firmware:
        > system firmware ota update
Downloading firmware version '26.2.147.55'...
Downloaded firmware /tmp/cli_firmware.bin remaining
Applying firmware version '26.2.147.55'...
41388K
netflash: got "/tmp/cli_firmware.bin", length=42381373
netflash: authentication successful
netflash: vendor and product names are verified.
netflash: programming FLASH device /dev/flash/image1
41408K 100%
Firmware update completed, reboot device
>
      2. Reboot the device:
        > reboot
>

    • To perform an OTA firmware update by using a specific version from the Digi firmware repository, use the version parameter to identify the appropriate firmware version as determined by using system firmware ota list command. For example:

      1. Update the firmware:
        > system firmware ota update version 26.2.147.55
Downloading firmware version '26.2.147.55'...
Downloaded firmware /tmp/cli_firmware.bin remaining
Applying firmware version '26.2.147.55'...
41388K
netflash: got "/tmp/cli_firmware.bin", length=42381373
netflash: authentication successful
netflash: vendor and product names are verified.
netflash: programming FLASH device /dev/flash/image1
41408K 100%
Firmware update completed, reboot device
>
      2. Reboot the device:
        > reboot
>

  Web

  1. Download the AnywhereUSB Plus operating system firmware from the Digi Support FTP site to your local machine.

    2. Log into the AnywhereUSB Plus WebUI as a user with full Admin access rights.

  2. On the main menu, click System. Under Administration, click Firmware Update.

  3. Click Choose file.
  4. Browse to the location of the firmware on your local file system and select the file.
  5. Click Update Firmware.

    During the firmware update process, the port LEDs change color and action to show the progress of the firmware update:

    • The LED for USB port 1 flashes white when the firmware update begins.

    • The LED for USB port 1 turns solid white while waiting for the Hub to reboot.

    • The LEDs for all ports turn solid white after the Hub reboots.

    • The LEDs for all ports flash white as the firmware loads.

    • When the update is complete, all USB port LEDs are off, except for the LEDs for the ports that are in use.

    Note If the firmware update fails, the LED for port 1 turns solid red and the Hub does not reboot.

  1. Download the AnywhereUSB Plus operating system firmware from the Digi Support FTP site to your local machine.
  2. Select the device in Remote Manager and click Actions > Open Console, or log into the AnywhereUSB Plus local command line as a user with full Admin access rights.

    Depending on your device configuration, you may be presented with an Access selection menu. Type admin to access the Admin CLI.

  3. Load the firmware image onto the device. We recommend using the /tmp directory.
    4. > scp host hostname-or-ip user username remote remote-path local local-path to local

    where:

    • hostname-or-ip is the hostname or IP address of the remote host.
    • username is the name of the user on the remote host.
    • remote-path is the path and filename of the file on the remote host that will be copied to the AnywhereUSB Plus device.
    • local-path is the location on the AnywhereUSB Plus device where the copied file will be placed.
  4. Verify that the firmware file has been successfully uploaded to the device:
    > ls /tmp
-rw-r--r--    1 root     root      37511229 May 16 20:10 AnywhereUSB Plus-26.2.147.55.bin
-rw-r--r--    1 root     root          2580 May 16 16:44 blank.json
...
>
  5. Update the firmware by entering the system firmware update command, specifying the path and file name to the firmware file.
  6. Reboot the device to run the new firmware image using the reboot command.
    > reboot
Rebooting system
>
  7. Once the device has rebooted, log into the AnywhereUSB Plus's command line as a user with Admin access and verify the running firmware version by entering the show system command.
    > show system

 Hostname                 : AnywhereUSB Plus
 FW Version               : 26.2.147.55
 MAC                      : 0040FF800120
 Model                    : Digi AnywhereUSB Plus
 Current Time             : Thu, Jan 11, 2024 12:10:00 +0000
 Uptime                   : 42 seconds (42s)

>
