Web

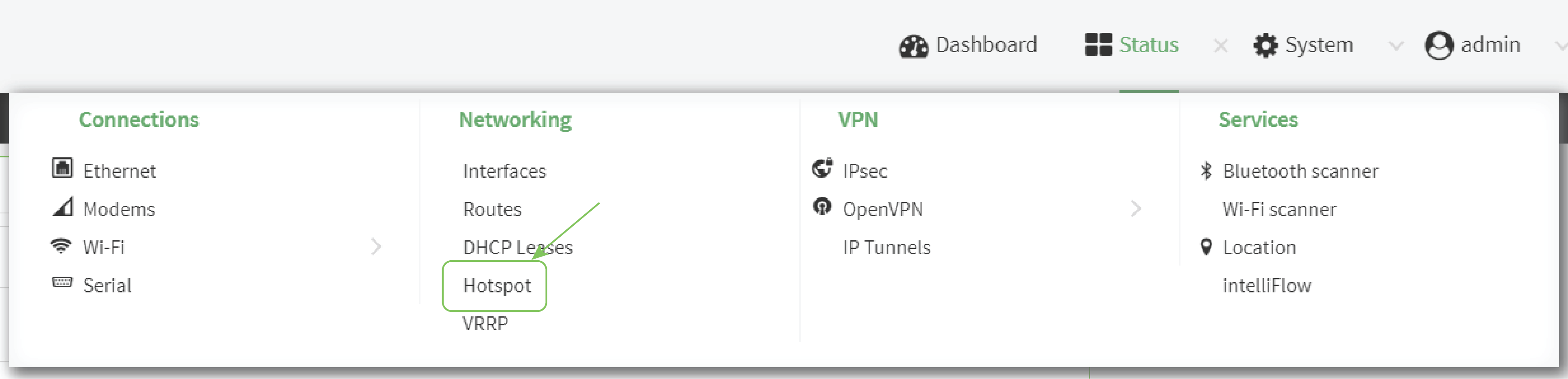

- On the main menu, click Status
- Under Networking, click Hotspot.

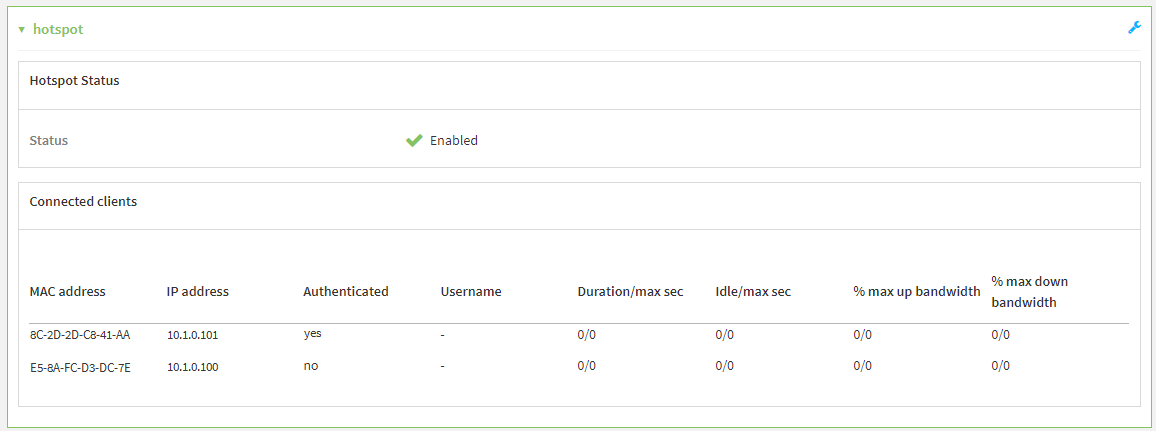

The Hotspot status page is displayed.
Log into the TX54 WebUI as a user with full Admin access rights.
Command line
- Select the device in Remote Manager and click Actions > Open Console, or log into the TX54 local command line as a user with full Admin access rights.
Depending on your device configuration, you may be presented with an Access selection menu. Type admin to access the Admin CLI.
- Enter the show hotspot command at the Admin CLI prompt:
> show hotspot Hotspot Enabled Status Device ----------- ------- ------ -------------- hotspot true up hotspot_bridge new_hotspot false down new_hotspot_ap >
- Enter the show hotspot name hotspot_name command at the Admin CLI prompt to display information about clients connected to a specific hotspot:
> show hotspot name hotspot MAC Address IP Address Auth Username Duration/max sec Idle/max sec %/max up bandwidth %/max down bandwidth ----------------- ---------- ---- -------- ---------------- ------------ ------------------ -------------------- 8C-2D-2D-C8-41-AA 10.1.0.101 yes mariev 0/0 0/0 0/0 0/0 E5-8A-FC-D3-DC-7E 10.1.0.100 no - 0/0 0/0 0/0 0/0 >
- Enter the show hotspot ip ip_address command at the Admin CLI prompt to display information about clients connected to a specific hotspot:
> show hotspot ip hotspot 10.1.0.101 MAC Address IP Address Auth Username Duration/max sec Idle/max sec %/max up bandwidth %/max down bandwidth ----------------- ---------- ---- -------- ---------------- ------------ ------------------ -------------------- 8C-2D-2D-C8-41-AA 10.1.0.101 yes mariev 0/0 0/0 0/0 0/0 >
- Type exit to exit the Admin CLI.
Depending on your device configuration, you may be presented with an Access selection menu. Type quit to disconnect from the device.
