Cellular Utilization

The Cellular Utilization report provides views of your total cellular utilization and utilization based on carrier type, device type, group, and several other filter categories.

  1. From the main menu, click Insights > Reports.

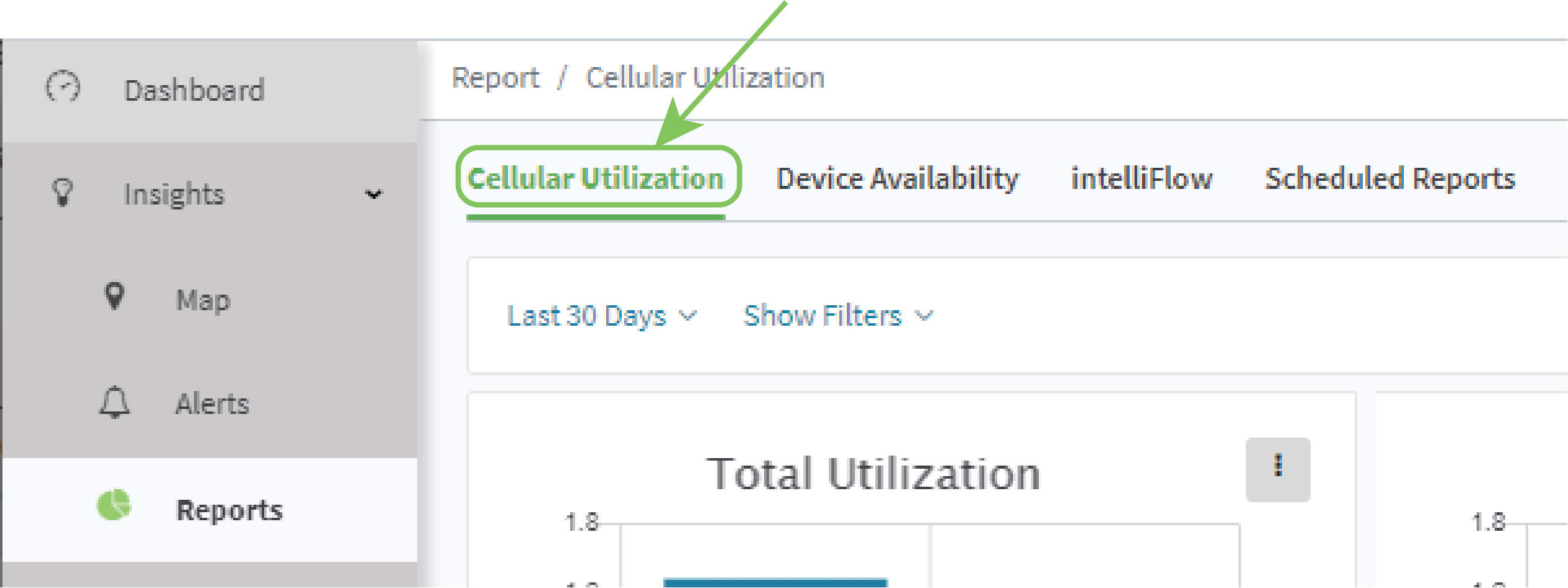

  2. Click the Cellular Utilization tab.

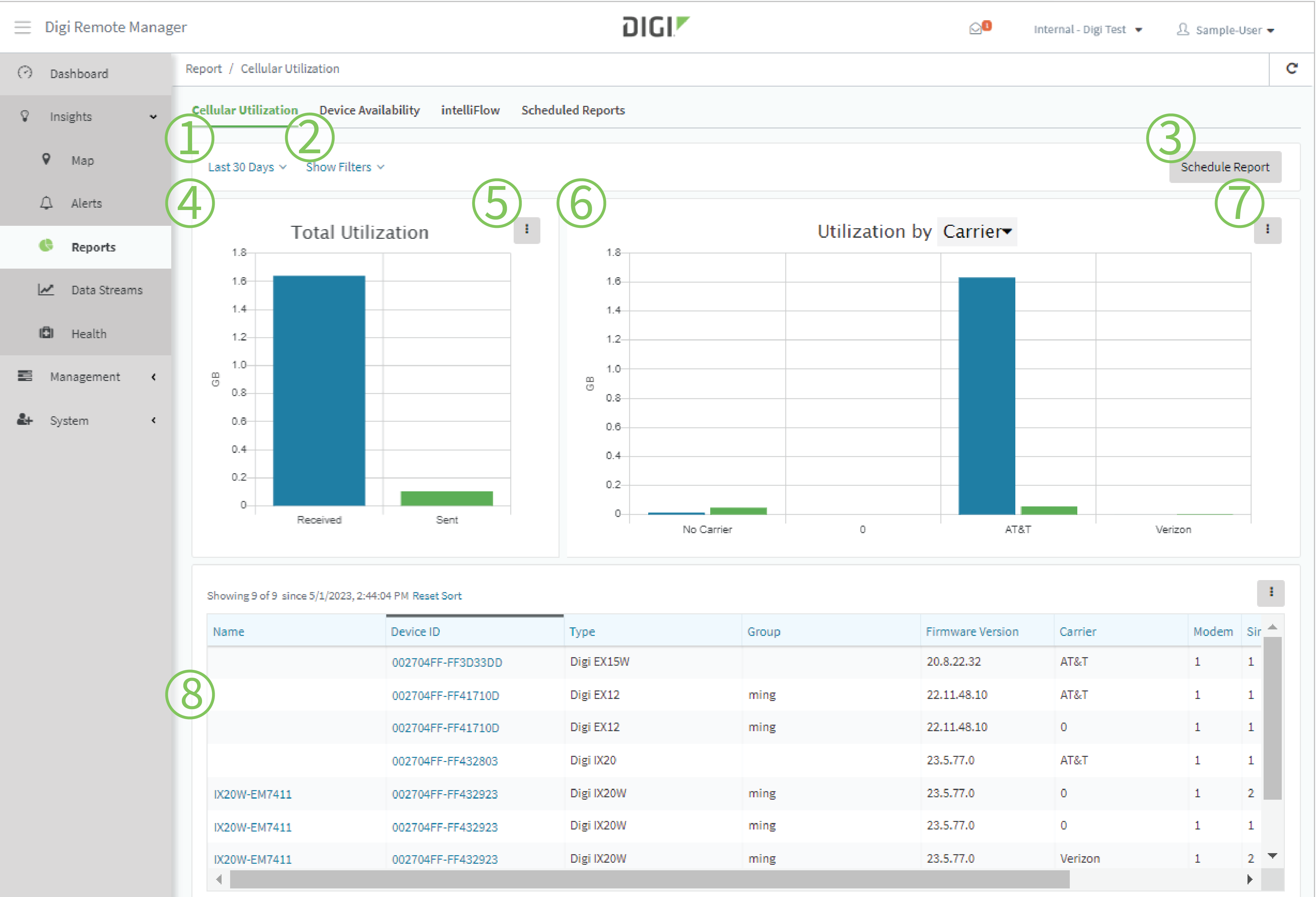

The Cellular Utilization report page displays:

# Component Description
1 Date and time selector

Select a relative time, such as within the Last Hour or Last 30 Days. Or, enter a Start and End date.
2 Filters

  1. Click to expand Show Filters .

  2. Type or select values for the appropriate filters.

  3. Click Generate Report when finished.
3 Schedule Report Click Schedule Report to open the Scheduled Report Options dialog.
4 Total Utilization graph Bar graph that displays the total data received and sent by all matching devices.
5 Total Utilization graph menu

Click next to Total Utilization to:

  • Set the unit of data to be displayed by the Total Utilization graph. Available values are KB, MB, GB, and TB.

  • Download a copy of the chart in PNG, JPEG, or SVG format.
6 Utilization by... graph Bar graph that displays the data received and sent by selected category.Click to select the category to display in bar graph form. Available categories are: Modem, SIM, Carrier, Device Type, Firmware Version, and Group.
7 Utilization by... graph menu

Click next to Utilization by... to:

  • Set the unit of data to be displayed by the Total Utilization graph. Available values are KB, MB, GB, and TB.

  • Download a copy of the chart in PNG, JPEG, or SVG format.
8 Cellular Utilization tabular view

Displays cellular utilization in tabular form.

Click to customize the display.

  • Click Select Columns to open a list of columns.

    • Click to select the columns that will be displayed in the device list.

    • Click and select whether to send the column to the top or bottom of the list.

    • Click to reorder the listing by dragging and dropping a column.

    • Click Use Defaults to return to the default display.

    • Click Close when finished.

  • Click Table Preferences to set your table view preferences:

    • Click Table Spacing to select Compact, Comfy, or Roomy spacing.

    • Click Device ID to determine how to display the Device ID, either Friendly (shorter) or Full. (This table preference is not applicable for the Templates table.)
