Change the access rights for a predefined group

By default, two authentication groups are predefined: admin and serial. To change the access rights of the predefined groups:

  Web

1. Log into Digi Remote Manager, or log into the local Web UI as a user with full Admin access rights.
2. Access the device configuration:
   Remote Manager:

   1. Locate your device as described in Use Digi Remote Manager to view and manage your device.
   2. Click the Device ID.
   3. Click Settings.
   4. Click to expand Config.
   Local Web UI:

   1. On the menu, click System. Under Configuration, click Device Configuration.



      The Configuration window is displayed.

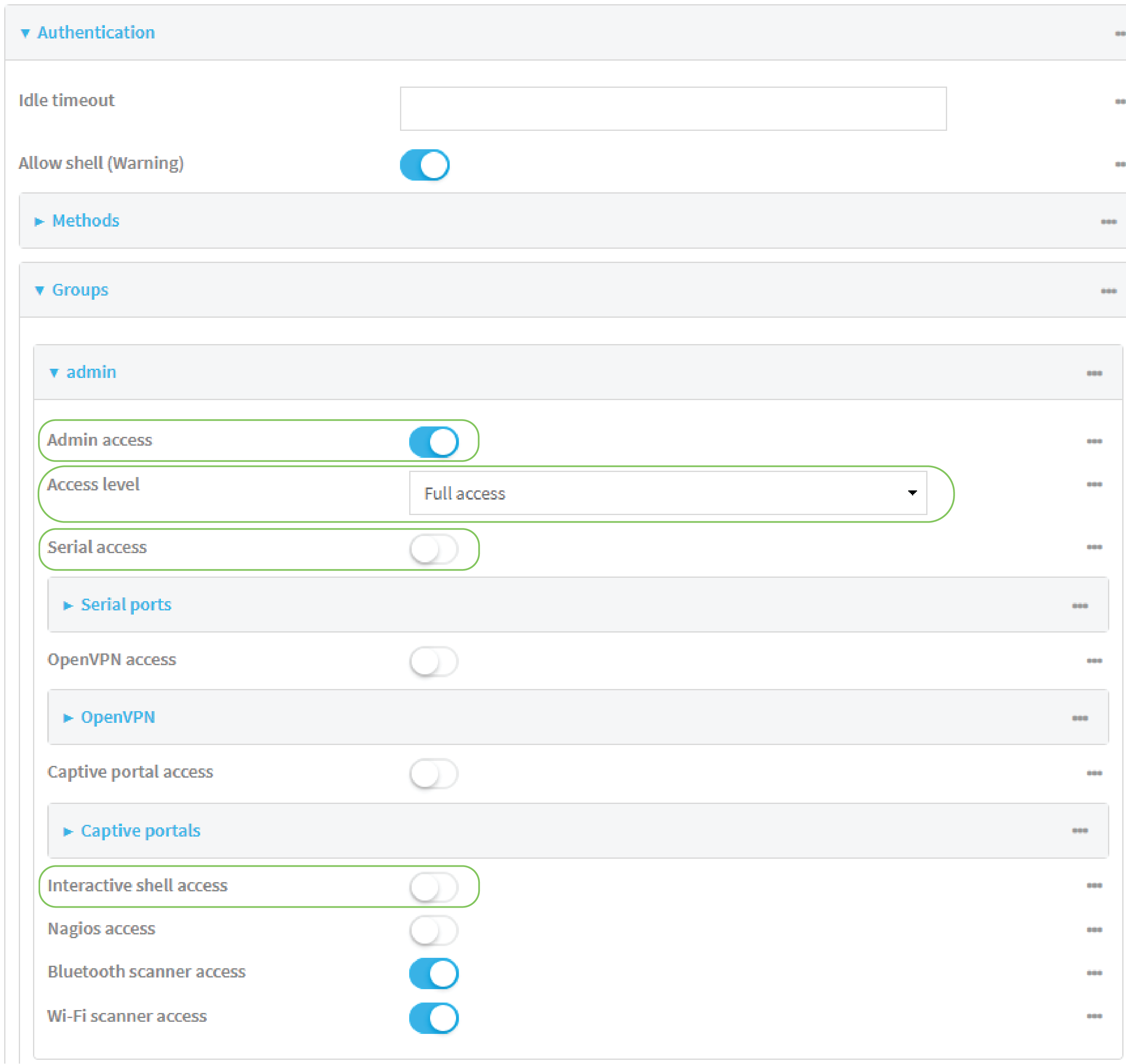

3. Click Authentication > Groups.
4. Click the authentication group to be changed, either admin or serial, to expand its configuration node.
5. Click the box next to the following options, as appropriate, to enable or disable access rights for each:
   • Admin access

   For groups assigned Admin access, you can also determine whether the Access level should be Full access or Read-only access.

   • Full access provides users of this group with the ability to manage the EX15 device by using the WebUI or the Admin CLI.
   • Read-only access provides users of this group with read-only access to the WebUI and Admin CLI.

   The default is Full access.

   • Serial access
   • Interactive shell access

   Shell access is not available if the Allow shell parameter has been disabled. See Disable shell access for more information about the Allow shell parameter.



6. Click Apply to save the configuration and apply the change.
