Configure a static route

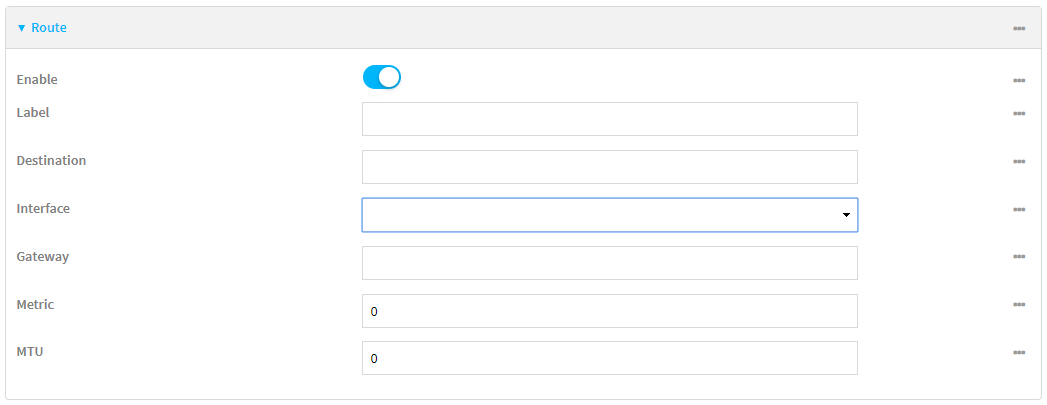

The new static route configuration page is displayed:

New static route configurations are enabled by default. To disable, toggle off Enable.

For example, to route traffic to the 192.168.47.0 network that uses a subnet mask of 255.255.255.0, type 192.168.47.0/24. The any keyword can also be used to route packets to any destination with this static route.

Depending on your device configuration, you may be presented with an Access selection menu. Type admin to access the Admin CLI.

> config
(config)>

(config)> add network route static end
(config network route static 0)>

New static route instances are enabled by default. To disable:

(config network route static 0)> enable false
(config network route static 0)>

(config network route static 0)> label "route to accounting network"
(config network route static 0)>

(config network route static 0)> destination ip_address[/netmask]
(config network route static 0)>

For example, to route traffic to the 192.168.47.0 network that uses a subnet mask of 255.255.255.0:

(config network route static 0)> dst 192.168.47.0/24
(config network route static 0)>

The any keyword can also be used to route packets to any destination with this static route.

1. Use the ? to determine available interfaces:

   (config network route static 0)> interface ?

   Interface: The network interface to use to reach the destination.
   Format:
     /network/interface/setupip
     /network/interface/setuplinklocalip
     /network/interface/lan
     /network/interface/loopback
     /network/interface/modem
     /network/interface/wan
   Current value:

   (config network route static 0)> interface

2. Set the interface. For example:

   (config network route static 0)> interface /network/interface/wan
   (config network route static 0)>

(config network route static 0)> gateway IPv4_address
(config network route static 0)>

(config network route static 0)> metric value
(config network route static 0)>

where value is an interger between 0 and 65535. The default is 0.

(config network route static 0)> mtu integer
(config network route static 0)>

(config)> save
Configuration saved.
>

Depending on your device configuration, you may be presented with an Access selection menu. Type quit to disconnect from the device.
