Download MIBs

This procedure is available from the WebUI only.

Required configuration items

• Enable SNMP.

To download a .zip archive of the SNMP MIBs supported by this device:



  WebUI

1. Log into the 6310-DX WebUI as a user with Admin access.
2. Enable SNMP.

   See Configure Simple Network Management Protocol (SNMP) for information about enabling and configuring SNMP support on the 6310-DX device.

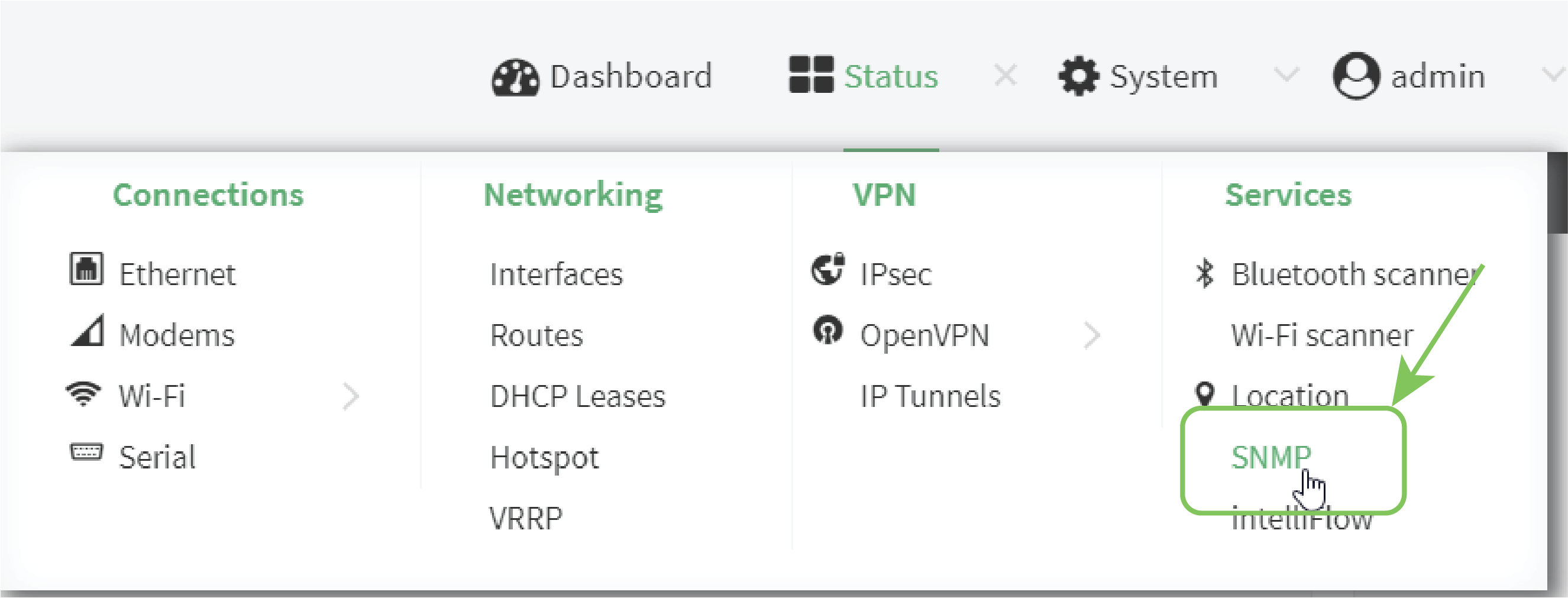

3. On the main menu, click Status. Under Services, click SNMP.

   Note If you have recently enabled SNMP and the SNMP option is not visible, refresh your browser.



   The SNMP page is displayed.

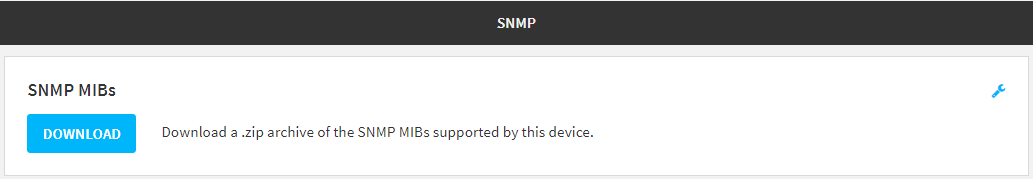

4. Click Download.
