5. Connect to AWS IoT

Once everything is properly configured, you can execute the demo application in the device:

#> awsiot-sample

The device console displays information with every new update:

=========================================
Updating shadow...
Temperature variation greater than 1C

Temperature: 44.512000C
CPU Load: 0.000000%
LED status: OFF
=========================================

Follow these steps to control the LED:

1. Log into your AWS IoT Console.
2. Click Test.
3. Enter # in the Subscription topic text field to subscribe to all topics.
4. In Publish > Specify a topic to publish to, type $aws/things/<thing_name>/shadow/update, where <thing_name> is the thing name of your registered device.
5. To switch on the LED, copy this in the text box:

{
    "state" : {
        "desired" : {
            "ledON" : true
         }
     }
}

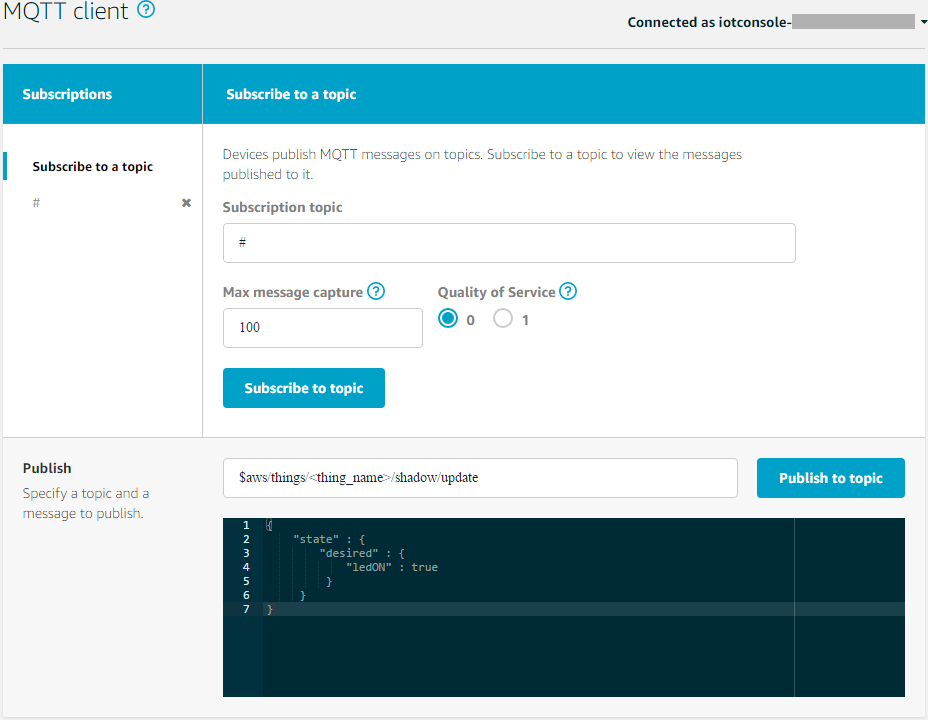

Click to see a sample dialog box.



6. Press Publish to topic to send the message. The LED on the board switches on.
7. To switch off the LED, change "ledON" : true to "ledON" : false and publish the message.

{
    "state" : {
        "desired" : {
            "ledON" : false
         }
     }
}
