History table

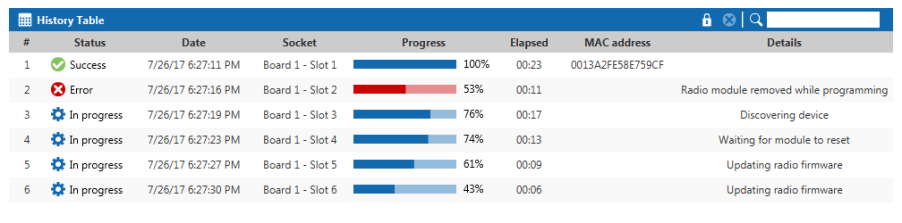

The history table is the main control of the application and is located in the center of the user interface. The history table displays all the programming tasks that have been finished and those that are taking place in the XBee slots of the XBee Multi Programmer tools connected to your computer.
Each programming task displays the following information in the table:
- #. Index identifier of the programming task. This index starts at 1 and increments by 1 for each new programming task that is executed.
- Status. Status of the programming task. The available statuses are listed in the following table:
| Status | Description | |
|---|---|---|
|
Waiting | XBee device is connected in the socket, but the programming process has not started yet. |
|
In progress | Programming process is in progress. |
|
Success | Programming process finished successfully. |
|
Error | Programming process failed. |
- Date. Complete date when the programming task started.
- Socket. XBee Multi Programmer board index and XBee socket ID of the device being programmed.
- Progress. Total percentage of the task's programming process.
- Elapsed. Total elapsed time in minutes and seconds for the programming task from beginning to end.
- MAC address. MAC address of the XBee device corresponding to the task.
Note The MAC address does not display until the programming task writes the firmware settings in the radio module.
- Details. Information about the actions taking place in the programming process. If the programming task failed, this field displays the reason.
Note History table columns allow you to sort programming tasks in ascending or descending order based on the column criteria.
The header pane of the history table contains a small toolbar located at the right side that allows you to perform some tasks in the table. For more information, see Table toolbar.
