Power consumption: Wireless-UART bridge

The following table shows average power consumption of each operating mode:

	IDLE	UART	UART+Wireless
Module power consumption	0.3011 W	0.30589 W	0.524 W

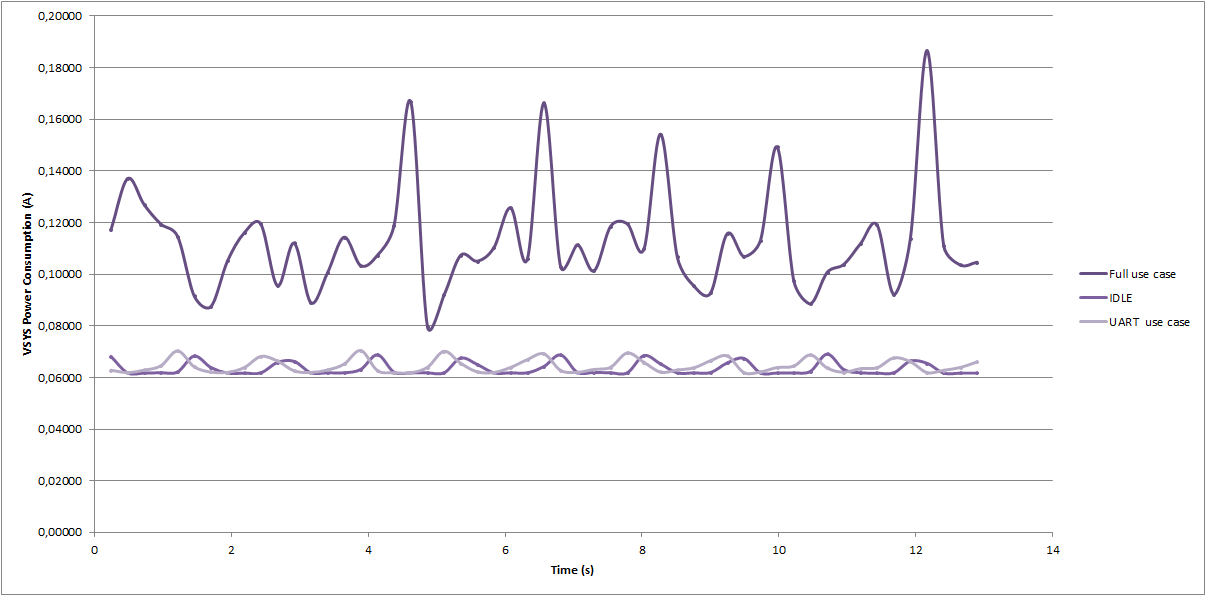

Note Average power consumption was calculated after approximately a minute of sampling data, but the plot shows power consumption over 13 seconds for a more detailed view of power consumption oscillations.

Note These power consumption numbers should be considered guidelines only, never as fixed or absolute values. Actual values will depend entirely upon individual setup and system application.
