Configure the serial port settings - MicroPython Terminal tool

Follow these steps to configure the serial port settings of an instance of the MicroPython Terminal tool. For more information, see MicroPython Terminal tool.

1. Click the Configure button on the MicroPython Terminal. If the console is not yet connected, click the Open button .

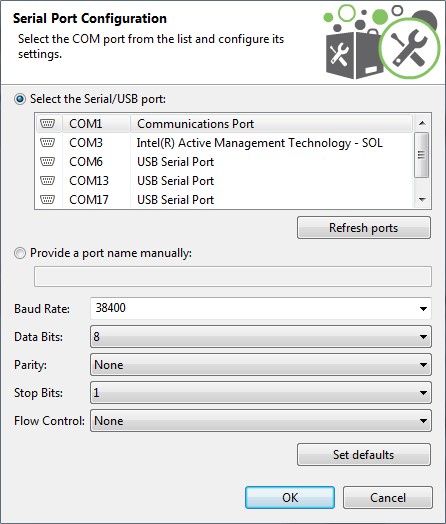

   The Serial Port Configuration dialog lists all of the serial connection parameters to be configured.



2. Select the device's serial port, or provide it manually. The rest of the parameters are loaded with their default values.

3. Change the configuration if needed. The most common serial configuration is:

   Baud rate: 9600 or 115200

   Data bits: 8

   Stop bits: 1

   Parity: None

   Flow control: None

   Note Custom baud rates can only be typed under Windows OS.
