Add a programmable radio module

Some radio module variants are programmable, which means they are able to run applications written in C. Normally, they are known as Programmable XBee modules and can be identified by a part number ending in B on the back label.

XBee-PRO modules are often confused with Programmable XBee modules. The -PRO suffix does not mean that the module is programmable.

To add a programmable radio module:

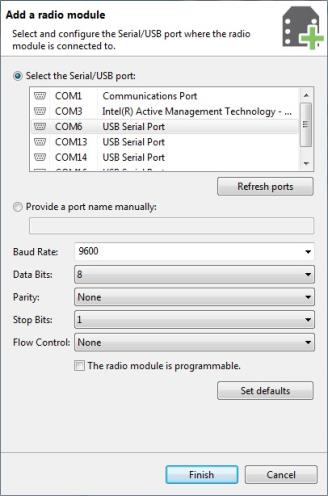

  1. Click the Add a radio module button from the toolbar. The Add a radio module dialog opens.

  2. Select the serial port to which the radio module is connected (or enter its name manually) and configure the serial settings of the port.
  3. Check the My radio module is programmable setting.
  4. Click Finish.
  5. Reset your radio module when prompted. The module appears in the device list.

For more information, see Local radio modules and Radio module information panel.
