Step 2: Connect your ConnectCore 6 SBC hardware

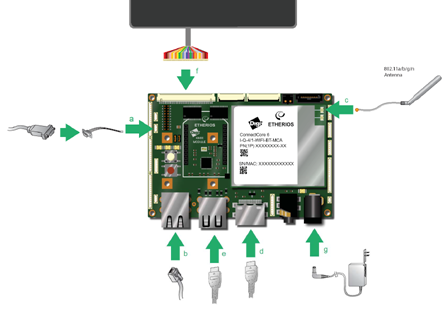

Follow the instructions to connect hardware to your ConnectCore 6 SBC.

  1. Connect the serial adapter cable to UART 4 console port [J9]. Connect a serial cable from the adapter to the development PC.
  2. Connect the Ethernet cable to the Ethernet port.
  3. Connect the antenna to the UFL connector.
  4. (Optional) Connect the HDMI cable (not included) to the HDMI connector.
  5. (Optional) Connect the USB cable (not included) from the HDMI monitor touch controller to the USB connector.
  6. (Optional) Connect a Fusion 10-inch LCD display (not included) to the LVDS connector.
  7. Add the appropriate plug and connect the power supply.
